WOH003-240 VIS-240 Shown-Made in Germany
- Analysis of defects in water pipes of 1 2/3" Ø and bigger
- Flue gas lines up to about 5.9" Ø
- Chimneys up to a size of 6.3" x 6.3"
- Air conditioning and heating lines
- Inspection of ducts
- For visual inspection of pipes measuring at least 1 2/3" Ø to 5.9" Ø
- Digital Memory and RCA Video output for recording

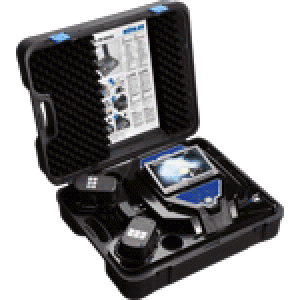

- Complete inspection set in one self-contained carrying case
- Waterproof, flexible camera head of 1" Ø and extremely high photosensitivity
- Cordless operation
- Super bright TFT monitor in color for brilliant pictures
- Tiltable monitor with 6.5 ft. cable
- Metric marked push rod cable
- Battery-supplied inspection of 1.5 h with 2 batteries
{youtube}k36CmPPQqCI{/youtube}
The WOH003-240 Service Camera Inspection with Digital Meter Counter & SD Card combines state-of-the-art camera technology, cordless operation, compact portability and a rugged durability. This provides the ultimate value package for inspecting piping from 1 1/4" to 6" in diameter. The Wohler VIS-240 series' 1" mini camera head delivers a crystal clear picture of any internal piping problem and is waterproof to a depth of 100 ft. Dual 12 V rechargeable batteries allow for over 1 1/2 hours of cordless operation. The WOH003-240 LCD screen provides brilliant picture quality which can be documented directly on the integrated SD card, to a VCR or other electronic devices through it's RCA video / USB output. The 60 ft. distance indicated push rod cable with integrated digital distance measuring pinpoints the exact location of the problem. All of the WOH003-240 series is boxed in a heavy duty carrying case bringing all the rugged durability expected from Wohler products.
Features at a Glance |
Versatile Application |
Flexible |
Exact Location |
Super Bright Lighting |
Digital Recording |
Brilliant LED Screen |
Specifications |
||
Monitor |
||
Size Housing |
7" x 4.5" x 1.3" |
|
TFT-Display |
7" / 16:9 format |
|
Video-out |
VCR |
|
1 lbs |
||
Miniature - Camera Head |
||
Sensor Type |
1/3" Color CCD |
|
Resolution |
420 lines |
|
Pixel |
500 x 582 (PAL), 500 x 592 (NTSC) |
|
Sensitivity |
0.5 Lux |
|
Field of view |
120° |
|
Light source |
12 white LEDs |
|
Protection |
Waterproof nach IP 68 |
|
Size |
1" x 1.5" Diameter |
|
Working Temp. |
14 - 122°F, RH 95% Max |
|
Rod |
||
Electronic distance measurement |
||
Length |
60 Feet/20m |
|
Carrying case, Heavy Duty |
||
Size |
20" x 17" x 7" (L x W x H) |
Ordering Information Model Description Buy Online Price WOH003-240 Service Camera Inspection with Digital Meter Counte, mini USB port, Camera Keys, and built-in recorder
Included Accessories
- 1 - Operation Manual
- 1 - Heavy Duty case with camera head color
- 1 - TFT wider screen monitor
- 1 - 6 ft connection cable
- 1 - 100 ft GRP rod
- 2 - Batteries
- 1 - Power Supply
- 1 - SD Card
Included
Accesories |
|
Wöhler VIS Guidance Set 100for VIS 3xx |
|
Wöhler VIS Centering Brush Extensionfor Wöhler VIS 2000 / 2xx / 3xx |
|
Wöhler VIS Centering Brushfor Wöhler VIS 2000 / 2xx / 3xx |
|
Wöhler VIS 2xx / VIS 3xx Quick Charger2,5 A / 230 V / 50 H |
|
Wöhler Miniature Camera Head Colorwith leather case, 26 mm Ø, with flexible adapter and leather case |
|
Wöhler L 24 Locator Setreceiver for Wöhler L 24 locator with 9 V battery, headset and transmitter for Wöhler L 24 locator receiver for Wöhler L 24 locator |
|
Replacement Plastic Domes (10 pcs.)for VIS 3xx |
|
Protection Sleevefor VIS 3xx |
|
Pan & tilt camera head 40 mm Øpluggable |
|
guidance weight, stainless steelfor mini camera head 740 gr |
|
guidance ballfor flex part of camera push rod |
|
Glass Domefor VIS 3xx |
|
Item no. 3169 J |
Car charger Wöhler VIS 2xx / VIS 3xx18 V |
Camera Roller Guidefor VIS 3xx
|
