CIA410-TL510A OPTICAL POWER METER WITH FC SC ST CONNECTOR -70~+10DBM FOR TELECOM TEST

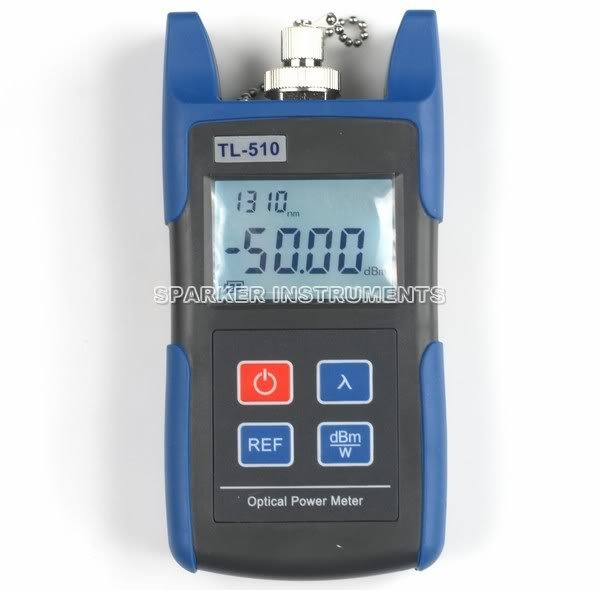

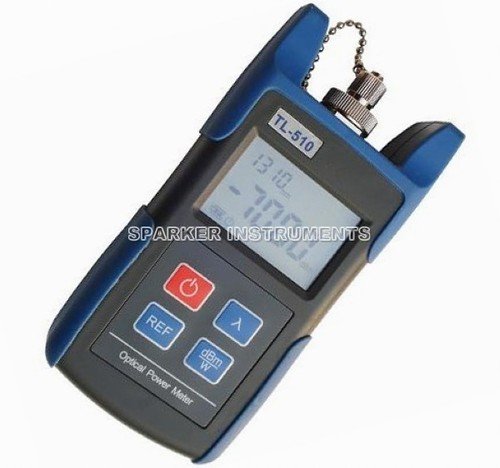

TL510A Mini handheld optical power meter
is a compact and an easy-to-use testing instrument for optical fiber networks, which can be used for absolute optical power measurements as well as for relative loss measurements in optical fibers.
It features ingenious appearance, wide range of power measurement, high accuracy and user self-calibration function with high performance-to-price ratio



  • Feature:
    Feature:
    User self calibration function
    Comfortable LCD display and optional backlight LCD display supports
    night operation
    Power measurements in dBm or mw and insertion loss in dB
    Low battery consumption, more than 120 hours continual operation time
    for three 1.5V alkaline batteries
    Optional 10 minutes Auto-off function
    Application:
    Maintenance in Telecom
    Maintenance CATV
    Test Lab of  optical fibers
    Other Fiber Optic Measurements


  • Specification:

    Type
                  TL510A
    TL510C
    Wavelength(nm)
    (800nm to 1650nm )
    Detector
    InGaAs
    Measurement Range (dBm)
    -70~+10
    -50~+26
    Calibrated Wavelength(nm)
    850,1300,1310,1490,1550,1625
    (more calibrated wavelength can be optional)
    Resolution(dB)
    Linear 0.1% or Non-linear 0.01dBm
    Connector
    SC, FC,ST/ Universal 2.5mm adaptor
    Power Supply
    3pcs AAA batteries
    Battery Operating Time
    240 h with 1.5V Battery(3)
    Operating Temperature(oC)
    _ 10 ~ +50
    Storage Temperature(oC)
    _ 20 ~ +70
    Working hours                                >120 hours ( without backlight
    Relative Humidity
    90% (+30oC )
    Weight
         160 g

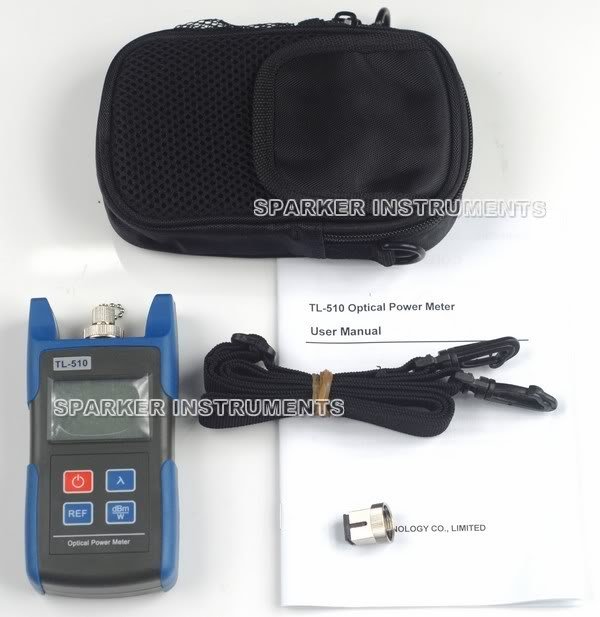

    Package list:
    1 x TL510A power meter
    1 x Carrying case
    1 x ST,FC,SC connector
    1 x English manual
