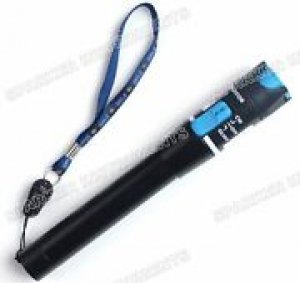

CIA425B-AIRFORCE NEW TL531 10MW VISUAL FAULT LOCATOR FIBER OPTIC CABLE TESTER METER 10-12KM

  • Introduction:
    The TL531 is specially designed for field personnel who need an efficient and economical tool for fiber tracing,fiber routing and continuity checking in an optical network during and after installation. It includes:Finding the breakpoint, poor connections, bending or cracking in fiber optic cables.Finding the faults of OTDR.The TL531 is specially designed for field personnel who need an efficient and economical tool for fiber tracing,fiber routing and continuity checking in an optical network during and after installation. It includes:Finding the breakpoint, poor connections, bending or cracking in fiber optic cables.Finding the faults of OTDR

  •   Specfication:
    2.5mm universal connector
    Operates either in CW or Pulsed
    Constant output power
    Lower Battery warning
    Long battery life (up to 60 hours)
    Crash-proof and dust-proof design for laser head
    Laser case ground design  prevents ESD damage
    Burning testing to ensure the reliability.
    Portable and rugged, easy to use

  • Specfication:


    Type



    Central Wavelength

    650nm+-10nm (635nm can be required on request)

    Emitter Type

    FP-LD

    Output Power

                                        10mW

    Optical Connector

    2.5mm universal connector for test different ST, SC, FC interferes

    Operating Model

    Both CW and Pulse available

    Pulse Frequency

    2~3Hz

    Power Supply



    Battery Operating Time

    Test with Panasonic LR6AAALKALINE battery

    Operating Temperature

    -10~+45 (oC)

    Storage Temperature

    -40~+70 (oC)

    Dimension (mm)

    15X180

    Weight

    200g(Without battery)
