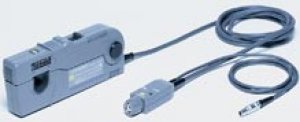

YOKOGAWA CURRENT PROBE 10 MHZ/150 ARMS 701930

Category: CURRENT PROBES
Frequency bandwidth:  DC to 10 MHz

Maximum continuous input range: 150 Arms Functions with Digital Oscilloscopes, Scopecorders or other waveform measuring instruments.

  • Bandwidth: DC to 10 MHz; current measurement: Max 150 A
  • Clamp configuration makes current measurements easy
    The probe simply clamp around the conductor being measure.
  • No external amplifier required: Connects directly to DL series instruments
    The probes can be directly connected to the 1 MΩ BNC inputs on the DL series instruments without the need for connection to a costly external amplifier. All probes in our lineup are space-saving, easy to carry, and offer superior performance at a reasonable cost.
  • Powered by the DL's probe power supply terminal
    The probes are also compatible with external power supplies.
  • Current values can be read directly on DL series instruments
    Using the current probe selection menu eliminates the need to enter current/voltage conversion values.
  • Includes demagnetizing switch and zero adjust dial functions
  • Relationship between the current being measured and probe's current consumption
  • 701934 probe power supply
  • APPLICATIONS
    • Inverter currents
    • Switching power supply inrush currents
    • Motor load currents
    • Breaker characteristics
    • Transformer/transmission systems
    • Fuel cell operation and characteristics
    • Power supply current waveforms
    • Power device consumed current
    • Vehicle electrical systems
