GW INSTEK GUT-6001C

Features

※ Windows XP Driver
※ Small, Portable, Light and battery Operation
※ Two Types of High Efficient Work; Mode:Stand-Alone Mode, PC Based Mode
※ LCD Display: 16 x 2 Characters
※ Can Set Programming Flow Chart, Voltage, Pulse Width & Other Parameters
※ Powerful HEX/ASCII Memory and Fusemap, Test Library and Full Screen Edit
※ Supported File Format: Binary Code, Intel HEX & 80/86 HEX

Description :

Handheld Flash Writer.

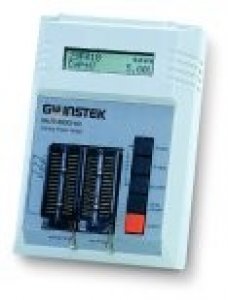

The GUT-6001C is a small, lightweight, battery or DC operated Flash writer. Two rows of 32pin connectors accept various types of ROM/EEPROM/FLASH EPROM ICs. Powerful features include test library, full screen editing, fuse map, HEX/ASCII memory, and flow chart/voltage/pulse width programming. The PC based mode, using a USB connection and a Windows XP compatible driver, gives this tiny device the depth and power of a desktop device.

Specification:

SUPPORTED DEVICES
  EPROM 27C/LV64~27C/LV080; EEPROM 27C64~28C040; Flash EPROM;
29C/LC256~29C/LC040; 29EE/LE/VE512~29EE/LE/VE020;
28F/LF/VF256~28F/LF/VF040; 29F001~29F0025;
39SF/VF512~39SF/VF040; 49BV/F512~49BV/F040; 49BV/F/LV001~49BV/F/LV002
TEST SOCKET
  32Pin x 2
DISPLAY
  16 x 2 Characters
DIMENSIONS & WEIGHT
  160(W) x 45(H) x 110(D) mm
Approx. 0.5kg

Accesssories :

DC 12V/500mA adapter x1, USB Cable x1

CD x1 (including Driver software & Manual)
Ordering Information:
GUT-6001C FLASH Writer
