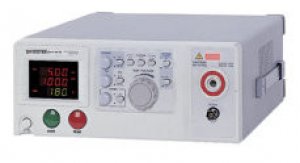

GW INSTEK GPT/GPI-800 Series

Features:

※ 500VA AC Test Capacity (for GPT-805, GPT-815, GPI-825)
※ True RMS Current Readback
※ Arc Detection
※ Zero Turn-On Operating Switch
※ 3 Ranges of Adjustable Cut Off Current
※ Voltage Output Adjustable During Test Period
※ Digital Display for Voltage, Current and Timer at Same Time
※ 9 Pin Remote Control for START, RESET
※ Automatic FAIL Indicator of Alarm Lamp and Buzzer
※ Easy Operation

Description:

The GPT/GPI-800 Series Safety Tester series offer an economical solution for the most frequently used electrical safety requirement, the AC withstanding test. The GPT/GPI-800 Series provide a reliable and accurate test environment for the operator through a number of safety-oriented features, such as a zero turn-on switch, remote control functions, and a PASS/FAIL signal output. In addition to the basic AC Withstanding test, the GPT-815 also features DC Withstanding testing and the GPI-825/826 feature Insulation Resistance testing. With a 500VA of AC capacity for the GPT-805/815 & GPI-825, there is ample headroom for testing a wide range of electrical equipment and components. The simple and robust GPT/GPI-800 Series can be used effortlessly in almost any real world application.


Function
Model
OUTPUT
AC
DC
IR
GPT-805
500VA
V


GPT-815
500VA
V
V

GPI-825
500VA
V

V
GPI-826
100VA
V

V

Specification:

ACW TEST
AC Output Voltage 0.2kV ~ 5kV
V Regulation 15%
V Accuracy ±(3% of reading + 3 counts)
Trip Current 0.3 ~ 100mA; 0.3 ~ 20mA (GPI-826)
Current Accuracy ≦1mA : ±(5% of reading + 40uA)
>1mA : ±(5% of reading + 20uA)
DCW TEST
DC Output Voltage 0.2kV ~ 5kV
V Regulation 20%
V Accuracy ±(3% of reading + 3 counts)
Trip Current 0.3 ~ 10mA
Current Accuracy ≦1mA : ±(5% of reading + 40uA)
>1mA : ±(5% of reading + 20uA)
IR TEST (GPI-825/826)
Output Voltage DC 500V / 1000V
Resistance 1~2000MΩ
Resistance Accuracy 1 ~ 500MΩ : ±(5% rdg 2counts)
501MΩ ~ 2000MΩ : ±(10% rdg 2counts)
FEATURES
Test Time 1 ~ 180sec or Continual
Arc Detection 0.3 ~ 100mA
0.3 ~ 20mA (GPI-826)
Digital Display V, A, Time
Voltage : 4 digits 0.39” LED
Current : 4 digits 0.39” LED
Timer : 3 digits 0.39” LED
POWER SOURCE
  AC 115 ± 10% or 230V ± 10%, 50/60 Hz (factory setting)
DIMENSIONS & WEIGHT
  330(W) x 149(H) x 446(D) mm; Approx. 20kg;
Approx. 15kg (only GPI-826)



Accessories:

User manual x1, Power cord x1, High Voltage test Probe GHT-205 x1


OPTIONAL ACCESSORIES
GHT-113  High Voltage Test Pistol
GHT-114  Clip High Voltage Probe
GRA-402  Rack Adapter Panel (19", 4U)

Ordering Information:

GPT-805 AC 500VA AC Withstanding Voltage Tester
GPT-815 AC 500VA AC/DC Withstanding Voltage Tester
GPI-825 AC 500VA AC Withstanding Voltage / Insulation Tester
GPI-826 AC 100VA AC Withstanding Voltage / Insulation Tester
