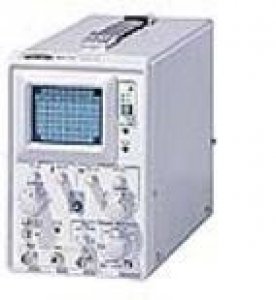

GW INSTEK GOS-310

Features:

10MHz Single Channel
TV Sync. Mode
High Sensitivity 5mV/div
Easy to Operate
Low Cost, High Performance
Designed for Education,Student, Hobbyist and Maintenance user



Description:

10MHz Triggering Oscilloscope

The GOS-310, 10MHz analog oscilloscope is designed for education, hobby and maintenance use. Standard trigger modes include auto, norm, ext and TV sync. and are applicable in various market fields. High 5mV/div sensitivity extends the measurement range and increases the test accuracy. 10MHz bandwidth, single channel, 4.6kg light weight and compact size design make the GOS-310 best choice for affordable yet high performance oscilloscope.

Specification:

CRT

Diaplay Area 75mm round screen CRT, 8 x 10 div (6mm/div)
Accelerating Potential Approx. 1.2kV

VERTICAL SYSTEM

Sensitivity 5mV ~ 5V in 4 decade steps
Bandwidth DC ~ 10MHz
Accuracy Within ±3% (at line Voltage ± 5%)
Input Impedance Approx. 1MΩ // 35pF
Max. Input 600Vpp or 300Vpk (DC+AC peak), ≦ 1kHz

HORIZONTAL SYSTEM

Sweep Rate

0.1μs ~ 10ms in 6 decade steps

Accuracy Within ±5% (at line Voltage±5%)

TRIGGER

Trigger Mode AUTO, NORM, EXT, TV
Trigger Source INT, EXT
EXT. Trigger Max. Input voltage: 600Vpp or 300Vpk (DC+AC peak)
Input Impedance Approx. 1MΩ // 35pF

X-Y OPERATION

Freq. Response DC ~ 500kHz (-3dB)
Sensitivity: approx. 0.1V/div
Input Impedance Approx. 1MΩ // 35pF
Max. Input Voltage 600Vpp or 300Vpk (DC+AC peak)
Phase Error 3° or less at 10kHz

CALIBRATOR

  1kHz±5% Square wave, 0.25Vpp±3%
POWER SOURCE
  AC 115/ 220/ 230V±10%, 50/60Hz
DIMENSIONS & WEIGHT
  132(W) x 210(H) x 298(D)mm; Approx. 4.6kg

Accessories:

User manual x 1
Power cord x 1
Test Lead GTL-101 x 1

Optional Accessories
GTL-110  Test lead, BNC-BNC heads

Ordering Information:

GOS-310  10MHz Triggering Oscilloscope
