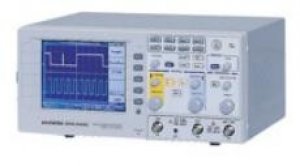

GW INSTEK GDS-800 Series

Features:

* 250/150/100/60MHz Bandwidth With Color/Mono LCD Display
* 125k Long Memory and 12 Division Horizontal Display
* 25GS/s Sampling Rate for Repetitive Waveforms
* Advanced Trigger:Pulse Width,TV Line,Event Delay And Time Delay
* Go-NoGo and Auto Setup Sequence
* FFT Function
* Built-In Help Manual, Multi-Language and PC Software
* Standard Interface: USB, RS-232C, Printer Port, Go/NoGo Output
* Option: GPIB Interface

Description:

GDS-800 Series DSO is designed for and built to meet the demands of a modern Digital Storage Oscilloscope in today's mainstream market. Featuring color or monochrome LCD displays, 125k points of memory, and 25GSa/s equivalent-time (ET) sampling rate per channel, the GDS-800 Series provides a good balance between memory depth and sampling speed. With RS-232C, USB, Go/NoGo, standard printer port (excluding GDS-806/810), and optional GPIB interface, the GDS-800 Series is remarkably adaptable. The easy-to-remember menu tree, the analog-scope like front panel design, the advanced trigger functions including Pulse Width, TV Line, Event and Time-Delay make the general purpose GDS-800 Series able to meet the rigors of most signal measurement requirements in the market.

FFT FUNCTION



With the FFT function, the GDS-800 Series can easily transform the signal display from time domain into frequency domain. Most remarkably, the GDS-800 Series is able to display a signal in the time domain and frequency domain at the same time. The cursors under the FFT mode can indicate the frequency and voltage values as well as the relative values of △frequency and △voltage.

All these measurement readings can be simultaneously shown in the display.


25GSa/s ET SAMPLING RATE AND 125k MEMORY
The GDS-806/810/820/840 Series, with superior sampling rate up to 25GSa/s, provide 40ps point to point resolution for displaying repetitive waveforms. With 125k points long memory, the GDS-800 Series provides higher or equal sampling rate and longer record length for the signal observation.

In general, under the same time base setting, the longer memory a DSO has, the higher sampling rate it performs. This is one of the reasons the GDS-800 Series can always give a better waveform display than oscilloscopes with short memory.

12 DIVISION HORIZONTAL DISPLAY

The on-screen menu of a DSO makes the operation easier, but it also limits the space for waveform display. The GDS-800 Series offers users with an alternative to view the waveform in 12 divisions by hiding the on-screen menu when it is not used.

Simply through a button press, the display becomes available for 12- division waveform. Press the button again, and the display goes back to normal. This is a very useful feature when users expect to view a longer portion of the signal under test.

FREQUENCY ADJUSTABLE PROBE CALIBRATION SIGNAL

The probe calibration signal in the GDS-806/810 is frequency GDS-800 Series adjustable from1kHz to 100kHz in 1kHz step, and duty cycle adjustable from 5% to 95% in 5% step. The probe calibration signal is provided mainly for accurately running probe compensation, but is also adequate to be used as a signal source for education and basic testing purpose. (This function is only available in GDS-806/810 Series)

15 AUTO MEASUREMENTS AND SIMULTANEOUS T/ V CURSORS

The 15 Auto Measurement functions in the GDS-800 Series enable users to easily measure the most frequently tested parameters of signals.

The GDS-800 Series are able to display 10 auto measurement data on the screen for two channels at the same time. Users will be able to get all their measurements results at a glance.

ADVANCED TRIGGER FUNCTIONS

The GDS-800 Series provides advanced trigger features such as TV line trigger, video trigger, pulse width trigger, event delay trigger and time delay trigger, which could only be found in a higher-end GDS-800 Series. The advanced trigger capability of the GDS-800 Series makes the waveform capture in a broad range of applications possible.

ON-SCREEN HELP MANUAL

The On-Screen Help Manual allows users to get a real-time help whenever they need to know the details of any function key. Press the"Help" key first, then press any other function key on the front panel, the On-Screen Help contents for that specific function key will appear in the display.

AUTO SET-UP SEQUENCE

The Auto Set-Up Sequence enables testing engineers to carry out ATE tests without complex software programming. After users program a sequence from the front panel, the GDS-800 Series starts performing the measurements step by step according to the sequence until completion. The ATE test cycle can be programmed to repeat for a number of times.

VERSATILE INTERFACE

The GDS-800 Series provides various kinds of interface including RS-232C, GPIB, USB, and printer port. With a software designed specially for USB communication, the GDS-800 Series enables users to view nearly synchronous waveform displays on both PC screen and the GDS-800 Series.

Specification:


GDS-806S / C
GDS-810S / C
GDS-820S / C
GDS-840S / C
DISPLAY SYSTEM
Display Device
806S : Mono LCD
806C : STN LCD
(320 x240)
5.7" LCD
810S : Mono LCD
810C : STN LCD
(320 x240)
5.7" LCD
820S : Mono LCD
820C : STN LCD
(320 x240)
5.7" LCD
840S : Mono LCD
840C : STN LCD
(320 x240)
5.7" LCD
Display Contrast Adjustable
Waveform Display Graticule 8×10 divisions ( 8 x 12 div, when menu off )
Display Mode Dot, Vector, Accumulate
VERTICAL SYSTEM
Bandwidth 60MHz (-3dB) 100MHz (-3dB) 150MHz (-3dB) 250MHz (-3dB)
Channels 2
Vertical Resolution 8-Bit
Vertical Sensitivity 2mV/div ~ 5V/div
Vertical Accuracy ±3%
Rise Time <5.8ns <3.5ns <2.3ns <1.4ns
Input Coupling AC、DC、Ground
Input Impedance 1MΩ ±2%, ~ 18pF 1MΩ ±2%, ~ 22pF 1MΩ ±2%, ~ 18pF
Polarity Positive & Negative
Maximum Voltage Between Signal & Common at Input BNC 300V ( DC+AC peak ), CATII
Waveform Signal Process CH1+CH2、CH1-CH2、FFT
Offset Range 2mV/div ~ 50mV/div:±0.5V
100mV/div ~ 500mV/div:±5V
1V/div ~ 5V/div:±50V
BW Limit 20MHz ( -3dB )
HORIZONTAL SYSTEM
Time Base Range 1ns/div ~ 10s/div ; Roll : 250ms/div~10s/div
Time Base Mode Main、Window、Window Zoom、Roll、X-Y
Time Base Accuracy ±0.01%
Delay Range Pre-trigger : 20 div maximum; Post-trigger : 1000 div
SIGNAL ACQUISITION SYSTEM
Real-Time Sample Rate 100MS/s maximum on each channel
Equivalent-Time Sample Rate 25GS/s maximum on each channel
Record Length 125k/CH
Peak Detection 10ns (500ns/div~10s/div)
Acquisition Mode Sample、Peak Detect、Average
Average 2, 4, 8, 16, 32, 64, 128, 256
TRIGGER
Trigger Source  CH1, CH2, Line, Ext
Mode Auto Level、Auto、Normal、Single、TV、Time Delay、Event Delay、Edge、Pulse Width
Coupling AC, DC, HF, LF, Noise Reject
Sensitivity

DC~25MHz : 0.5div or 5mV
25MHz~60MHz : Approx. 1.5div or 15mV
DC~25MHz : 0.5div or 5mV
25MHz~100MHz : 1.5div or 15mV
DC~30MHz : 0.5div or 5mV
30MHz~150MHz : 1.5div or 15mV
DC~30MHz : 0.5div or 5mV
30MHz~150MHz : 1.5div or 15mV
150MHz~250MHz : 2.0div or 20mV
X-Y MODE
X-Axis Input / Y-Axis Input Channel 1 / Channel 2
Phase Shift ±3° at 100kHz
CURSOR & MEASUREMENT
Auto Voltage Measurement Vpp,Vamp,Vavg,Vrms,Vhi,Vlo,Vmax,Vmin
Auto Time Measurement Freq, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle
Cursor Measurement

Voltage difference between cursors(ΔV)
Time difference between cursors(ΔT)
Frequency difference between cursors(1/ΔT)
FREQUENCY COUNTER
Readout Resolution Max. 6 digits
Frequency Range AC Coupled, 20Hz to rated bandwidth; resolution : 10Hz
Signal Source All available trigger source except the Video Trigger mode
EXTERNAL TRIGGER
Range  ±15V
Sensitivity

DC~25MHz:~50mV
25~60MHz :~100mV
DC~25MHz:~50mV
25~100MHz :~100mV
DC~30MHz:~50mV
30~150MHz :~100mV
DC~30MHz:~50mV
30~150MHz :~100mV
150MHz~250MHz : ~150mV
Input Impedance 1MΩ±2%, ~ 18pF 1MΩ±2%, ~ 22pF 1MΩ±2%, ~ 18pF
Maximum Input 300V ( DC+AC peak ) , CATII
CONTROL PANEL FUNCTION
AutoSet  "Autoset" can adjust Vertical ( Volt/div ), Horizontal ( Sec/div ) and Trigger level automatically
Save/Recall Up to 15 sets of measurement conditions can be saved and recalled
Waveform Trace Save/Recall 2 sets of waveform can be saved and recalled
INTERFACE
Standard  RS-232C USB, RS-232C, Printer Port, Go/NoGo Output
Option 01 GPIB (Factory Installed)
Option 11 USB, Printer Port, Go/NoGo Output (Factory Installed)
-
POWER SOURCE
  100V ~ 240V, AC 47Hz ~ 63Hz, Auto selection
DIMENSIONS & WEIGHT
  310(W) x 142(H) x 254(D)mm, Approx. 4.1kg

Accessories:

User manual x 1, Power Cord x 1
Probe-GTP-060A-2 : 60MHz ( 10 : 1/1 :1 ) Switchable Passive Probe for GDS-806S/806C (one per channel)
Probe-GTP-100A-2 : 100MHz ( 10 : 1/1 :1 ) Switchable Passive Probe for GDS-810S/810C (one per channel)
Probe-GTP-150A : 150MHz ( 10 : 1/1 :1 ) Switchable Passive Probe for GDS-820S/820C (one per channel)
Probe-GTP-250A : 250MHz ( 10 : 1/1 :1 ) Switchable Passive Probe for GDS-840S/840C (one per channel)

Optional Accessories
GRA-405  Rack mounting (19", 4U)
GSC-005  Soft carrying case
GTL-110  Test lead, BNC-BNC heads
GTL-232  RS232 cable, 9 pin female to 9 pin, Null modem for computer
GTL-242  USB 2.0 A-B type cable
GTC-001  Instrument cart, 450(W) x 430(D)mm (120V input socket)
GTC-002  Instrument cart, 330(W) x 430(D)mm (120V input socket)

Ordering Information:

GDS-806C  60MHz, 2-channel, Color LCD Display DSO
GDS-806S  60MHz, 2-channel, Mono LCD Display DSO
GDS-810C  100MHz, 2-channel, Color LCD Display DSO
GDS-810S  100MHz, 2-channel, Mono LCD Display DSO
GDS-820C  150MHz, 2-channel, Color LCD Display DSO
GDS-820S  150MHz, 2-channel, Mono LCD Display DSO
GDS-840C  250MHz, 2-channel, Color LCD Display DSO
GDS-840S  250MHz, 2-channel, Mono LCD Display DSO

Option
Opt.01: GPIB Interface (Factory Installed)
Opt 11: USB, Printer Port, Go/NoGo Output (Factory Installed) (for GDS-806/810 Series Only)
