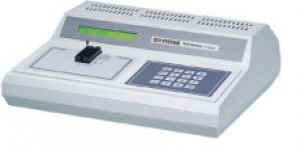

GW INSTEK GUT-6000A (Replaced by GUT-6000B)

Features:

※ Loop Test
※ Auto-Search
※ Seif-Diagnosis
※ Over-Load Protection
※ Measures 1800 Kinds of Device
※ 54/74 Series TTL
※ 4000 and 4500 Series CMOS
※ Test Socket: 28 Pin

Description:

Replace Model : GUT-6000B

Bench-Top Digital IC Tester.

The GUT-6000A is a desktop digital IC tester. Oriented toward automating testing tasks, the GUT-6000A contains high-end features such as auto-search and loop testing. Automated processes provide an intelligent and continuous process for detecting defective ICs. Self-diagnosis functions and over-load protection mechanisms make the GUT-6000A close to maintenance-free, releasing users from unnecessary hassles. The wide device coverage includes the 1800 series as well as the ubiquitous TTL and CMOS, providing a one-size fits-all solution for an IC testing bench area.



Specification:

TEST RANGE
  54/74 series TTL
CMOS 40/45
RCA1800
TEST VOLTAGE
  5V
TEST TIME
  Average Search Time: 0.8 Sec
DISPLAY
  16 Characters in 1 line LCD
POWER SOURCE
  AC 100V~240V+10%, 50/60Hz
DIMENSIONS & WEIGHT
  335(W) x 105(H) x 300(D) mm
Approx. 1.5kg



Accessories:

User manual x1, Power cord x1

Ordering Information:

GUT-6000A Digital IC Tester
