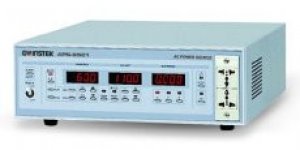

GW INSTEK APS-9000 Series

Category: AC Power Source

Features:

True RMS Meter
Wide Output Voltage / Frequency Variable Range
Save/Recall 4 Sets of Voltage/Frequency Memory
Over Current Protection and Over Temperature Protection
Stable and Low-Distortion Output Waveforms
Software Calibration to Ensure Accuracy
Panel-Lock Function to Prevent Operation Error
Frequency,Volt,Amp,Watt and Power Factor Display

Description:

The APS-9000 Series are dual output, 300 to 1000VA, linear AC power source. To protect the APS-Series and loads from unexpected conditions, over current, over temperature, and short-circuit protection are standard. High accuracy and low distortion are maintained at true RMS and < 0.5% THD, respectively. The key lock feature prevents tampering. Three separate LED displays simultaneously show frequency / voltage and current to enable easy operation. Configuration is simplified with the store/recall function for output settings. Software calibration reduces maintenance efforts. The APS-Series are suitable for middle-size laboratories and production test applications requiring high accuracy and security.

Specification:

TYPE

APS-9301
APS-9501
APS-9102
OUTPUT CAPACITY

300VA
500VA
1kVA
OUTPUT VOLTAGE
  0.0 ~ 300.0VAC, 0.1V/step (110V/220V selectable)
OUTPUT MAX. CURRENT
0~150V
0~300V
2.6Arms
1.3Arms
4.2Arms
2.1Arms
8.4Arms
4.2Arms
FREQUENCY
  45.0~500.0Hz (50Hz/60Hz selectable)
0.1Hz/step (45.0Hz~100.0Hz), 1Hz/step (100.0Hz~500.0Hz)
WAVEFORM


Sine wave, 0~150V the above 22V < 0.5% THD (resistance load)
0~300V the above 44V < 0.5% THD (resistance load)

LINE VOLTAGE REGULATION
  < 0.1%
LOAD REGULATION
  + 0.5% + 0.1V
SAVE/RECALL
  4 settings, Save/Recall operated by hand
PROTECTION
  Short-circuit protection, panel-lock,
over temperature protection, current overflow protection
MEASUREMENT

Range
Resolution
Accuracy
Frequency Counter
0.0~999.9Hz
0.1Hz
+ 0.1Hz
RMS Volt-Meter
0.0~380.0V
0.1V
+ (1%rdg + 0.1V)
RMS Amp-Meter
0.000~2.000A
1.80~35.00A
1.0mA
0.01mA
+ (1%rdg + 5mA)
+ (1%rdg + 20mA)
Wattage Meter
0.0~360.0W
320.0~3500.0W
0.1W
1.0W
+ (1.5% of rdg + 5digits)
+ (1.5% of rdg + 5digit)
POWER SOURCE
  AC 115V/230V+15%, 47 ~ 63Hz, single phase
OPERATION TEMPERATURE/HUMIDITY
  0°C ~ +40°C ; <80% (non-condensing)
DIMENSIONS
  430(W) x 137(H) x 500(D) mm
WEIGHT

Approx. 20kg
Approx. 25kg
Approx. 35kg

Accessories:

User Manual X 1, Power Cord X 1

Ordering Information:

APS-9102 1kVA A.C Power Source
APS-9501 500VA  A.C Power Source
APS-9301 300VA  A.C Power Source

Download:

Marcom Tool



Description
