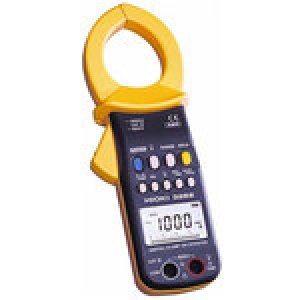

HIO0004-Hioki 3282 Frequency Clamp On Hi-Tester (TRMS)

Category: Clamp meters
  • AC Current/Voltage, Frequencies, Resistance, Conduction check, Temperature (probe sold separately)
  • Wave peak value, Waveform distortion check
  • Auto-power off to prevent the power from being left on
  • Non-fuse type protects up to 600 V AC
  • 1000 A AC Ø 46 mm

Description

Clamp On Hi-Tester (TRMS)

Even if voltage is mistakenly applied to the resistance range, the internal excessive voltage protection element (PTC thermister) protects the circuits for up to 600 V AC.

The HAND STRAP not only prevents the device from being dropped when working, but also effectively imparts strength when parting crowded wiring to clamp.

Specifications

AC Current range: 30.00 to 1000 A AC, 3 ranges (±1 % rdg. ±5 dgt. at 50 or 60Hz), Effective value rectifier
Wave peak value at AC Current: 30.0 to 600 A peak, 3 ranges (±3 % rdg. ±5 dgt. at 50 or 60Hz)
AC Voltage range: 300.0 or 600 V AC, 2 ranges (±1 % rdg. ±3 dgt. at 50 or 60Hz), Effective value rectifier
Wave peak value at AC Voltage: up to 300 or 600 V peak, 2 ranges (±3 % rdg. ±5 dgt. at 50 or 60Hz)
Distortion check: 1 to 5 Crest factor
Resistance: 1 k or 10 k-ohm range
Temperature: -50 to 150 °C (9462 TEMPERATURE PROBE required, sold separately)
Frequency: 100 or 1000Hz
Mode: Slow/Peak/C.F./RMS/Record mode/Auto-off/Conduction
Analog Output: None
Frequency characteristics (at AC current / voltage): 40 to 1000 Hz
Display Section: Digital / 3000 dgt. Bar graph / 35 seg.
Sampling Rate: 2 or 4 times/sec (Slow: 1 times/3 sec)
Crest Factor (RMS): 2.5 (1.7 at 600 A, 600 V range)
Max. Circuit Voltage: 600 V AC rms (insulated wire)
Power Supply: 6F22 (006P) × 1, Continuous use 45 hours
Core jaw dia.: Ø46 mm(1.81 in)
Dimensions: 62 mm(2.44 in)W × 218 mm(8.58 in)H × 39 mm(1.54 in)D
Weight: 400 g (14.1 oz)
Accessories: 9207-10 TEST LEAD (1), 9399 CARRYING CASE (1), Hand strap (1)
