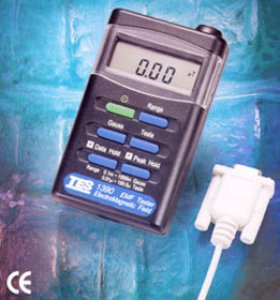

TES0046-1392 Datalogging EMF Tester

1392 EMF TESTER

  • The EMF tester is designed to provide user a quick, reliable and easy way to measure electromagnetic field radiation levels around power lines, home appliances and industrial devices.
  • The EMF tester is a cost effective, hand-held instrument designed and calibrated to measure electromagnetic field radiation at different bandwidths.
  • Display micro Tesla & milli Gauss in the same tester.
  • Data hold, Peak hold function

      On-line computer (1391/1392) Data logging (1392) function.



Display

  3-1/2 digits. Max. indication 1999

Range

  200 / 2000 milli Gauss
  200 micro Tesla

Resolution

  0.1 / 1 milli Gauss
  0.01 / 0.1 micro Tesla

Number of Axis

  Single axis

Band Width

  30 Hz to 300 Hz

Accuracy

  +/- (3% + 3d) at 50Hz / 60Hz

Over-Input

  Display shows "OL"

Sampling Time

  Approx. 0.4 second

Battery

  4 pcs size AAA (Alkaline Battery)

Battery Life

  Approx. 60 hours

Operating Temp and Humidity

  0oC to 40oC (32oF to 104oF) below 80%RH

Storage Temp and Humidity

  -10oC to 60oC below 70%RH

Weight

  Approx. 165g

Dimension

  111(L) x 64(W) x 34(H) mm

Accessories

  Operation Manual, 4 pcs size AAA (Alkaline Battery)
  ,RS-232 interface / software (1391/1392)

Datalogging Capacity(TES-1392)

  16000 Point Data logging
