HOB301-UX120-017 4-CHANNEL PULSE, EVENT, STATE AND RUN-TIME DATA LOGGER (LOGGER ONLY)

IMPORTANT:data loggers require software (USB interface cable included w/CD purchase) and a communications device. See compatible items below.

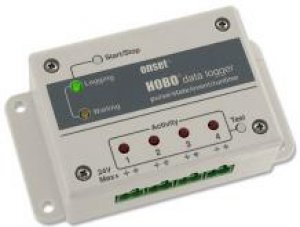

The HOBO UX120 Pulse Logger is a highly versatile, 4-channelenergydata logger that combines the functionality of four separate data loggers into one compact unit. It enables energy management professionals – from energy auditors to building commissioners – to easily track building energy consumption, equipment runtimes, and water and gas flow rates. The HOBO UX120 Pulse Logger is available in astandard memory model (UX120-017)capable of 500,000 measurements and anexpanded memory version (UX120-017M)capable of over 4,000,000 measurements.

  • Simultaneously measures and records pulse signals, events, state changes, and runtimes
  • Stores up to over 4 million measurements, enabling longer deployments with fewer site visits
  • Maximum pulse rate – 120 Hz
  • Pulse input range – 0 to 24VDC
  • Streamlines deployment via a range of start/stop options, logger status LEDs, and high-speed USB 2.0 data offload
  • Works with Onset'sEnergy & Power Meterto measure Power Factor (PF), Reactive Power (VAR), Watt Hours (Wh) and more.

Environment:
The UX120-017 Data Logger is for use inIndoorenvironments

Measurements:
The UX120-017 Data Logger supports the following measurements (sensors sold separately):

AC Current, AC Voltage, Amp Hour (Ah), Amps (A), Event, Kilowatt Hours (kWh), Kilowatts (kW), Motor On/Off, Power Factor (PF), Pulse Input, Runtime, State Open/Closed, Volt-Amp Reactive (VAR), Volt-Amp Reactive Hour (VARh), Volt-Amps (VA), Volts (V), Watt Hours (Wh), Watts (W)
