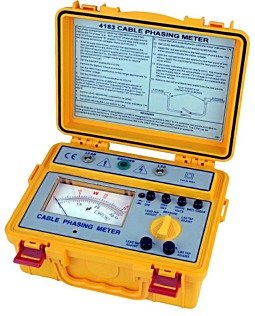

SEW0049-4183 CP CABLE PHASING METER

● Safely operates at low voltage
● Measures system voltage.
● Measures capacitance of test point if system voltage is known.
● Checks phase rotation of cables.
● Phases out cables.
● Rugged - comes with portable case.
● Operates from potential test point of elbow connectors.
● Battery operated.



SPECIFICATIONS
Voltage ranges : 0~16kV / 0~32kV
Accuracy : ±8% (exclusive of tap
    capacitance variations)
Tap capacitance setting : 0.4 to 3.0pF continuous
    per channe
Frequency : 50 or 60Hz
Dimensions : 250(L) × 190(W) × 110(D)mm
Weight
(battery included) : Approx. 1420g
Power source : 1.5V (AA) × 4
Safety standard : EN 61326-1
