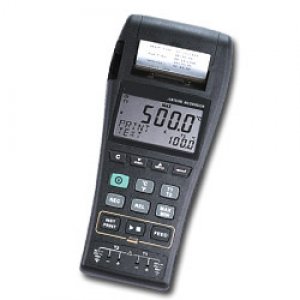

CEN0021-500V2 PRINTING TEMPERATURE GRAPHIC RECORDER (K,J/GRAPHIC PRINTER/ DATALOGGER / USB)

Category: Thermometers

a temperature graphic recorder with built in printer. The printer can output text format so that the users can get the exact reading, or it can output graphic format to give the whole changing tendency in one image. The sample period and the graphic scale are programmable so the users can get the exact result as expected. Besides the printer function, this unit is also a datalogger. The recorded data can be logged to a computer for further analysis.



  • Built in thermal printer for text and graphic printout
  • Dual 5 digits big font LCD to provide simultaneous readout
  • The easy access menu buttons and text area in the LCD provides a simple and intuitively hierarchical menu operation for system setup
  • Button group for thermometer provides the direct access of the most commonly used functions for temperature measurement
  • Button group for printer provides the direct access of most commonly used function for printer control
  • Photo coupler isolated RS-232 port provides the direct connection of data flow to a personal computer with the Windows based software
  • Dual inputs thermocouple connector provides two inputs for K and J type temperature sensors

Range: K-type: -200~1370°C; -328~2498°F
Range: J-type: -200~760°C; -328~1400°F
Accuracy: ±0.1%+0.8°C; ±0.1%+1.6°F
Resolution: 0.1°C; 0.1°F
  Battery: 1.5V AA x 6
  Dimensions: 242 x 98 x 42mm
Weight: 580g

Accesories:
Battery, instruction manual, tool box, AC power adapter, K-type sensor x 2, thermal paper x 2, RS232 or USB cable, software
