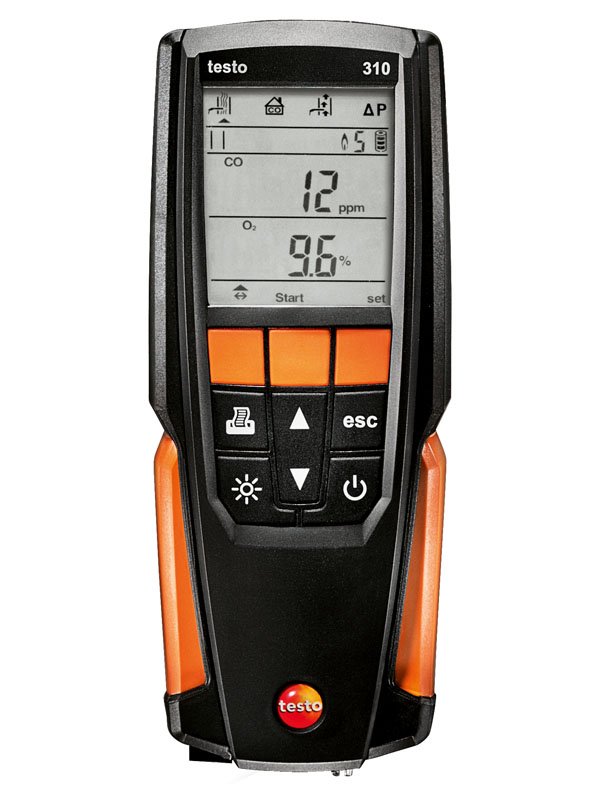

testo 310 set

testo 310 incl. battery and calibration protocol for the measurement of O2, CO, hPa and °C; probe 180 mm with cone; case; mains unit incl. cable; silicon hose for pressure measurement; particle filter 5 off.

  • Robust and light instrument for daily use
  • 30 seconds sensor zeroing
  • O2 and CO measurement
  • Integrated magnets for easy fixing to burner
  Measuring range Accuracy ±1 digit Resolution Adjustment
time t90

Temperature (flue gas)

0.0 to 400.0 °C ±1 °C (0,0 to 100,0 °C)
±1.5 % of reading ( > 100 °C)
0.1 °C < 50 sec

Temperature (Ambient temperature)

-20 to +100.0 °C ± 1 °C 0.1 °C < 50 sec

Draught measurement

-20.00 to +20,00 hPa ± 0.03 hPa (-3.00 to +500 hPa)
± 1.5% of m.v. (remaining range)
0.01 hPa

Press. measurement

-40,00 to +40.0 hPa ± 0.5 hPa 0.1 hPa

O2 measurement

0,0 to 21.0 vol.% ± 0.2 vol.% 0.1 Vol. % 30 sec

CO measurement (without
H2 -compensation)

0 to 4000 ppm ±20 ppm (0 to 400 ppm)
±1,5 % of reading (401 to 2000 ppm)
±10 % of reading (2001 to 4000 ppm)
1 ppm 60 sec

Ambient CO measurement

0 to 4000 ppm ±20 ppm (0 - 400 ppm)
±1,5 % of reading (401 to 2000 ppm)
±10 % of reading (2001 to 4000 ppm)
1 ppm 60 sec

Determination degree of effectivity (Eta)

0 to 120 %   0.1 %

Exhaust gas loss

0 to 99,9 %   0.1 %

General technical data

Storage temp.

-20.0 °C to +50,0 °C

Oper. temp.

-5 to +45 °C

Power supply

Rech. batt.: 1500 mAh, mains unit 5V / 1A

Memory

No memory

Display

Backlit 2-line display

Weight (with probe)

approx. 700 g

Dimensions

201 x 83 x 44 mm

Warranty

Measuring instrument, flue gas probe, gas sensors: 24 months
Thermocouple: 12 months
Rech. batt.: 12 months

testo 310

testo 320

testo 330 LL

Measurement parameters

O2

0 to 21 % 0 to 21 % 0 to 21 %

CO

0 to 4000 ppm 0 to 4000 ppm 0 to 4000 ppm

Option: CO H2 compensated

false 0 to 8000 ppm 0 to 8000 ppm

COlow

false 0 to 500 ppm 0 to 500 ppm

NO

false false 0 to 3000 ppm

NOlow

false false 0 to 300 ppm

Differential pressure

0 to 40 hPa 0 to 300 hPa 0 to 300 hPa

Temperature

0 to 400 °C -40 to +1200 °C -40 to +1200 °C

Additional applications

Flow, system, static and jet pressure

true true true

Gas leak probe

false true true

Probe for ambient
CO measurement

false true true

Solid fuel measurement

false false true

Tightness test
on gas pipes

false false true

Instrument technology

Display

2-line segment Colour display Colour display

Communication

IR IRDA / USB / BT IRDA / USB / BT

Printer integration

true true true

Sensor diagnosis

false true true

Connection to PC or laptop

false true true

Sensor exchange by user

false true true

Measurement report memory

false 500 500.000

Warranty

2 years 2 years 4 years
