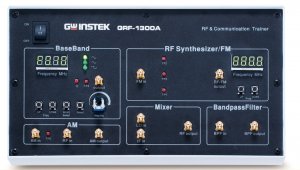

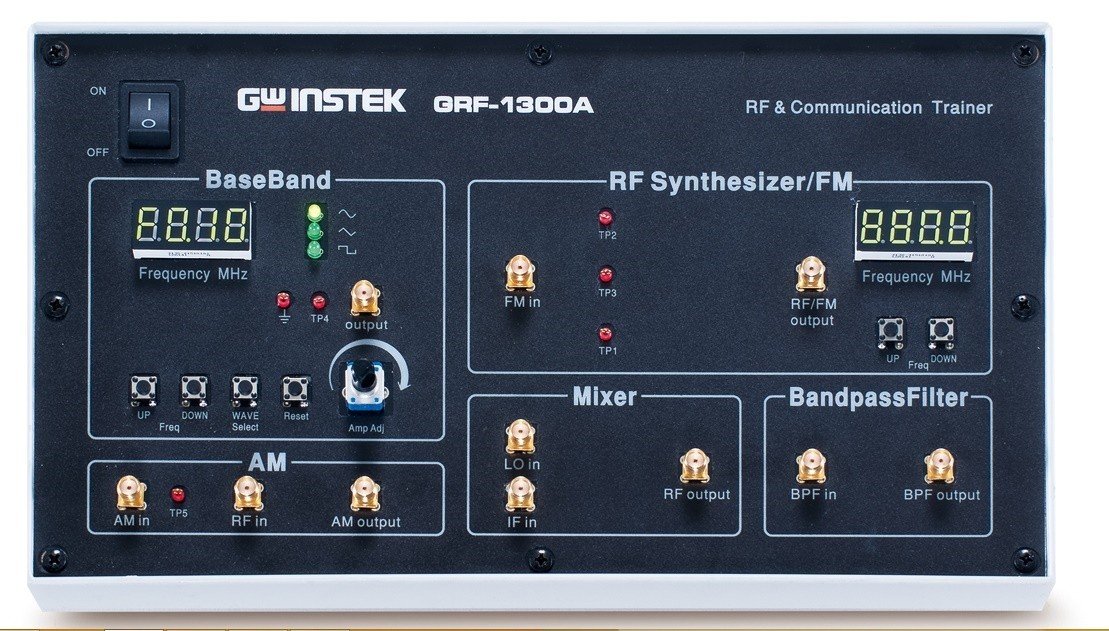

GW INSTEK GRF-1300A

Features

- Baseband Signal : Sine, Triangle, Square wave
- Frequency Range: 0.1 ~ 3MHz
- RF Frequency : 870 ~ 920MHz
- AM & FM Modulation
- Mixer & 2.4GHz Bandpass Filter
- 5 programmable On/Off Switches and 5 Test Points to Simulate 8 Failure Conditions for Trouble-Shooting Study
- USB Interface to Provide Remote Control

Description :

GRF-1300A, as an optional accessory of GSP-730, is a trainer for basic RF communications experiments.

The brand new GRF-1300A RF training kit features not only all functions of GRF-1300 RF training kit but also augments itself with Mixer and Bandpass Filter. Users can better understand the characteristics of Mixer and Bandpass Filter by operating scalar network analyzer measurement which is produced by combining GSP-730 spectrum analyzer, GRF-1300A RF Communications Trainer, and USG signal generator.

The combination of USG signal generator and GRF-1300A Mixer function can produce 2.4GHz AM and FM modulation signals. GRF-1300A Bandpass Filter can purify the output signals by filtering out harmonic and spurious produced by Mixer output signals.

Specification :



Function

Item

Specification

Base Band

Waveforms

Sine, Square, Triangle

  1. FrequencyRange

0.1~3MHz , Step : 10kHz

Amplitude

1.5Vpp

0.75Vpp into 50 Ohm

Harmonic Distortion

-30dBc

RF / FM Analysis

Frequency Accuracy

±0.15MHz

Adjustable Range

45MHz (870M ~ 920MHz) , Step : 1MHz

  1. PowerRange

-15dBm

FM

Max Frequency Deviation

>3MHz

AM

Peak Difference

-18dBm

Mixer

LO + IF

LO - IF

-35dBm

-35dBm

Mixer + modulation



-60dBm

Bandpass Filter

Frequency Centre: 2.4GHz

Bandwidth: ±20MHz

Interface

USB Device

USB Type B

Dimensions & Weight

165(W)*155(H)*90(D)mm, Approx. 1.2kg

Accessories :

Standard Accessories

Experiment Text Book, Student Version x1, Power Cord x1, CD-ROM with PowerPoint file and Primary RF Software x1, RF Cable x6, Antenna x2, N to SMA Adapter x1

Option

GBK-002 Experiment text Book, Teacher Version

Ordering Information:

Standard Accessories

Experiment Text Book, Student Version x1, Power Cord x1, CD-ROM with PowerPoint file and Primary RF Software x1, RF Cable x6, Antenna x2, N to SMA Adapter x1

Option

Turn-key solution for RF and Communications Courses

GSP-730, Spectrum Analyzer x 1
USG-LF, RF Signal Generator x 1
GRF-1300A, RF training kit x 1
ADP-003, N-type to SMA Adapter x 1

GSP-730, 3GHz Spectrum Analyzer

Standard Accessories

Quick Start Manual *1, User Manual CD *1, Power Cord *1


GRF-1300A, RF and Communications Trainer

Standard Accessories

Experiment Text Book, Student Version x1, Power Cord x1, CD-ROM with PowerPoint file and Primary RF Software x1, RF Cable x6, Antenna x2, N to SMA Adapter x1

Option

GBK-002 Experiment text Book, Teacher Version

USG-LF44, RF Signal Generator

Standard Accessories

USB cable x1, CD-ROM with USG software, Primary RF software and User Manual x1

Option

ADP-003, 50 Ohm N type (female) to SMA (female) Adapter

Free Download

Primary RF, Remote Control Software

USG Java program
