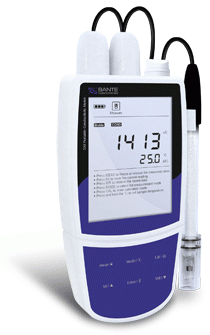

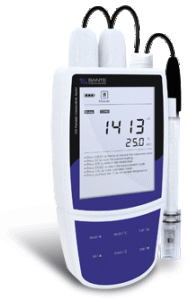

BANTE 530 Portable Conductivity/TDS/°C/°F Meter

Bante530 portable conductivity meter used for measuring the

electrical conductivity and TDS of liquids.







Features:

Up to 5-point push-button calibration allows user to uses customized

    calibration solutions.

Adjustable TDS factors, cell constants, temperature coefficients and

    normalization temperature.

Automatic Temperature Compensation (ATC) ensures highly accurate

    measurements over the entire range.

Manual temperature calibration provides accurate temperature value.

Selectable either temperature units between degrees Celsius (°C)

    and degrees Fahrenheit (°F).

Selectable linear or pure water compensation modes.

Calibration due reminder prompts you to calibrate the meter regularly.

Automatic endpoint function freezes the stable measured values for

    easy reading and recording data.

Help message as a operational guide to helps you understand how

    to use meter.



Setup menu lets user customize calibration points, stability conditions,

    temperature units, date and time to meet measurement requirements.

Reset function can resumes all settings to factory default values.

Expanded memory stores and recalls up to 500 readings.

Built-in real-time clock stamps stored data to meets GLP standards.

Stored data can be transferred into computer via USB communication

    interface.



Specifications:
     Model   Bante530
   Conductivity Range   0~20mS/cm (Max.200mS/cm)
   Conductivity Accuracy   ±0.5% Full Scale
   Calibration Points   Up to 5 points
   Calibration Solutions   10uS/cm, 84uS/cm, 1413uS/cm, 12.88mS/cm, 111.8mS/cm
   TDS Range   0~10ppt (Max. 20ppt, Depending on factor setting)
   TDS Accuracy   ±1% Full Scale
   TDS Factor   0.1~1.0 (Default 0.5)
   Temperature Range   0~105°C, 32~221°F
   Temperature Accuracy   ±0.5°C, ±0.9°F
   Temperature Calibration   Manual
   Temperature Compensation   0~100°C, 32~212°F, Automatic or Manual
   Temperature Coefficient   0.0~10.0% per °C
   Compensation Modes   Linear or Pure Water
   Cell Constant   K=0.1, 1, 10, Selectable
   Normalization Temperature   20°C or 25°C
   Auto-Off   Manual or Automatic (10, 20, 30 minutes after last key pressed, Selectable)
   Hold Function   Manual or Automatic
   Stability Conditions   Low or High, Selectable
   Calibration due reminder   0 to 30 days
   Reset Function   Yes
   Sensor Type   Platinum (Order Code: CON-0.1, CON-1 or CON-10)
   Connector   6-pin
   Memory   500 data sets with Date/Time stamping
   Output   USB Communication Interface
   Power Requirements   3×1.5V "AA" Batteries
   Battery Life   Approximately 150 hours
   Dimensions   170(L)×85(W)×30(H)mm
   Weight   300 grams

  Order Code and Accessories:
     Order Code   Accessories


   Bante530-S



CON-1 Conductivity Electrode

Conductivity Calibration Solutions (146.5uS/cm, 1413uS/cm, 12.88mS/cm)

TP-10K Temperature probe

Carrying Case and "AA" Batteries


     Bante530-DH

CON-1 and CON-10 Conductivity Electrode

Conductivity Calibration Solutions (146.5uS/cm, 1413uS/cm, 12.88mS/cm)

TP-10K Temperature probe

Carrying Case and "AA" Batteries




   Bante530-DL



CON-1 and CON-0.1 Conductivity Electrode

Conductivity Calibration Solutions (146.5uS/cm, 1413uS/cm, 12.88mS/cm)

TP-10K Temperature probe

Carrying Case and "AA" Batteries
