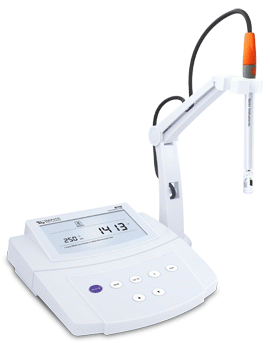

BANTE 510 Standard Conductivity/TDS/°C/°F Meter

Bante510 benchtop conductivity meter used for measuring the

conductivity and TDS of liquids. The meter is widely used in

environmental and ecological studies for monitoring the purity

and concentration of water.



Features:

Large backlit LCD display shows mode indicators and help messages.

Up to 3-point push-button calibration allows user to uses customized

    calibration solutions.

Auto-Ranging for conductivity and TDS measurements.

Adjustable TDS factors, cell constants and temperature units.

Automatic Temperature Compensation (ATC) ensures highly accurate

    measurements over the entire range.

Automatic endpoint function freezes the stable measured values for

    easy reading and recording data.

Manual temperature calibration provides accurate temperature value.

Help message as a operational guide to helps you understand how

    to use meter.



Setup menu lets user customizes calibration points, temperature units,

      automatic or manual hold function, auto-off feature to meet personal

    preferences.

Reset function can resumes all settings to factory default values.



Specifications:
     Model   Bante510
   Conductivity Range   0~20mS/cm (Max.200mS/cm)
   Conductivity Accuracy   ±1% Full Scale
   Calibration Points   Up to 3 points
   Calibration Solutions   10uS/cm, 84uS/cm, 1413uS/cm, 12.88mS/cm, 111.8mS/cm
   TDS Range   0~10ppt (Max. 20ppt)
   TDS Accuracy   ±1% Full Scale
   TDS Factor   0.1~1.0 (Default 0.5)
   Temperature Range   0~105°C, 32~221°F
   Temperature Accuracy     ±1°C
   Temperature Calibration   Manual
   Temperature Compensation   0~100°C, 32~212°F, Automatic or Manual
   Temperature Coefficient   0.0~10.0% per °C
   Cell Constant   K=0.1, 1, 10, Selectable
   Normalization Temperature   25°C
   Auto-Off   Manual or Automatic (180 minutes after last key pressed)
   Hold Function   Manual or Automatic endpoint
   Reset Function   Yes
   Connector   6-pin
   LCD Display   Custom Dual-Display LCD (135×75mm)
   Power Requirements   DC9V, using AC adapters, 220VAC/50Hz
   Dimensions   210(L)×205(W)×75(H)mm
   Weight   1.2kg

  Order Code and Accessories:
     Order Code   Accessories
     Bante510-UK

K10 Conductivity Electrode (Made in UK)

TP-10K Temperature Probe

Conductivity Calibration Solutions (146.5uS/cm, 1413uS/cm, 12.88mS/cm)

DC9V Power Adapters




   Bante510-S



CON-1 Conductivity Electrode

TP-10K Temperature Probe

Conductivity Calibration Solutions (146.5uS/cm, 1413uS/cm, 12.88mS/cm)

DC9V Power Adapters


     Bante510-DH

CON-1 and CON-10 Conductivity Electrode

TP-10K Temperature Probe

Conductivity Calibration Solutions (146.5uS/cm, 1413uS/cm, 12.88mS/cm)

DC9V Power Adapters


     Bante510-DL

CON-1 and CON-0.1 Conductivity Electrode

TP-10K Temperature Probe

Conductivity Calibration Solutions (146.5uS/cm, 1413uS/cm, 12.88mS/cm)

DC9V Power Adapters
