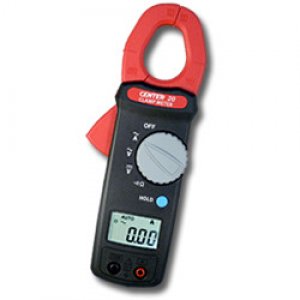

Center CENTER 20 - Basic Clamp Meter (AC)

Category: Clamp_Meters

We optimized the cost to sell for less but never wanted to sacrifice any performance. The new CENTER 20 is built on quality. It is robust and reliable. The basic clamp meter functions with AC current measurement are more than proficient for most of general electricians or equipment installers in the field. Also, it’s rated 600V CAT III, it is safe to use.

Features:

  • Basic handy clamp meter
  • ACV, DCV measurement up to 600V
  • ACA measurement up to 400A
  • Resistance and Continuity functions
  • 600V CATIII

    Specifications:


    AC Current
    Range Resolution Accuracy
    50Hz~60Hz
    60Hz~400Hz
    40A 0.01A 1.9%+3 3.0%+5
    400A 0.1A

    AC Voltage
    Range Resolution
    Accuracy
    50Hz~400Hz
    400V 0.1V 1.2%+3
    600V 1V

    DC Voltage
    Range Resolution Accuracy
    400V 0.1V 1%+3
    600V 1V


    Resistance
    Range
    Resolution
    Accuracy
    400Ω
    1%+2


    Continuity
    Range
    Active Region
    < 25Ω

    Jaw opening size: 25.4mm
    Battery: 1.5V AAA x 2
    Dimensions: 203 x 75 x 32mm
    Weight: 262g
    *The specifications are subjects to change without prior notice.

    Standard Accessories:

    Batteries, test lead, instruction manual.
