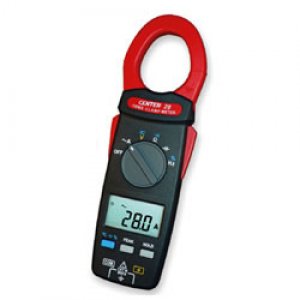

Center CENTER 28 - Mid-size Slim Clamp Meter (AC)

Category: Clamp_Meters

Features:

  • 26mm slim and 153g lightweight design
  • True RMS measuring
  • Measuring up to AC 1000A
  • Data hold function
  • 1ms peak function
  • Capacitance measurement
  • Frequency measurement from clamp & terminal
  • Auto ranging
  • Auto power off
  • 600V CATIII

    Specifications:


    AC Current
    Range Resolution
    Accuracy
    600A 0.1A 1.9%+5
    1000A 1A

    AC Voltage
    Range Resolution
    Accuracy
    6V 0.001V 1.2%+5
    60V 0.01V
    600V 0.1V

    DC Voltage
    Range Resolution Accuracy
    6V 0.001V 1%+2
    60V 0.01V
    600V 0.1V


    Resistance
    Range
    Resolution
    Accuracy
    600Ω
    0.1Ω
    1%+2
    6KΩ
    0.001KΩ
    60KΩ
    0.01KΩ
    600KΩ
    0.1KΩ


    Continuity
    Range
    Active Region
    < 100Ω

    Frequency
    Function
    Range
    Resolution
    Accuracy
    Hz (A)
    600Hz
    0.1Hz 0.2%+2
    6KHz
    0.001KHz
    Hz (V)
    600Hz
    0.1Hz
    6KHz
    0.001KHz
    60KHz
    0.01KHz

    Capacitance
    Range
    Resolution
    Accuracy
    6μF
    0.001μF
    3%+10
    60μF
    0.01μF
    600μF
    0.1μF


    Duty Cycle
    Range
    Resolution
    Accuracy
    1~99%
    0.1%
    0.5%


    Jaw opening size: 40mm
    Battery:  CR2032 x 1
    Dimensions: 207 x 66 x 26mm
    Weight: 153g
    *The specifications are subjects to change without prior notice.

    Standard Accessories:

    Battery, test lead, instruction manual, carrying case
