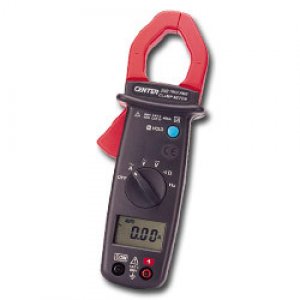

Center CENTER 202 - Mini Clamp Meter (AC, TRMS)

Category: Clamp_Meters

Features:

  • True RMS
  • AC/DC current measurement
  • Pocket size
  • High speed bargraph
  • Data hold function
  • Touch zero function
  • Auto ranging
  • Auto power off
  • Resolution 0.01A, 0.1V
  • Measure frequency from current clamp & test terminal
  • 300V CATIII

    Specifications:


    AC Current
    Range Resolution Accuracy
    50Hz~60Hz
    60Hz~500Hz
    40A 0.01A 1.9%+5 2.5%+5
    400A 0.1A

    AC Voltage
    Range Resolution
    Accuracy
    50Hz~500Hz
    400V 0.1V 1.5%+5
    600V 1V

    DC Voltage
    Range Resolution Accuracy
    400V 0.1V 1%+2
    600V 1V


    Resistance
    Range
    Resolution
    Accuracy
    400Ω
    0.1Ω
    1%+2


    Continuity
    Range
    Active Region
    < 40Ω

    Frequency
    Function
    Range
    Resolution
    Accuracy
    Hz (A)
    20Hz-4KHz
    1Hz 0.1%+1
    10KHz
    10Hz
    Hz (V)
    10Hz-4KHz
    1Hz
    40KHz
    10Hz
    400KHz
    100Hz

    Jaw opening size: 25mm
    Battery:  1.5V AAA x 2
    Dimensions: 193 x 50 x 28mm
    Weight: 240g
    *The specifications are subjects to change without prior notice.

    Standard Accessories:

    Batteries, Test lead, Instruction manual, Carrying case
