Features:
※ For Troubleshooting or Testing Logic Circuits
※ Directly Injects Signal into Logic Circuits without Removing Components
※ Sync Input for Producing Externally Synced Signals
※ Operating Voltage Range: 5 ~ 15VDC
※ Maximum Input Probe Voltage: ± 35VDC
※ Maximum Sync Input Voltage: ± 120V/30sec
※ Sync Input Impedance: 1MΩ
※ Pulse Repetition Rate: 0.5/400Hz
※ Output Current: Pulser Mode, 100mA Sink/Source
※ Square Wave, 5mA Sink/Source
※ Dimensions & Weight: 18(W)x210(H)x18(D)mm: Approx. 40g
Description:

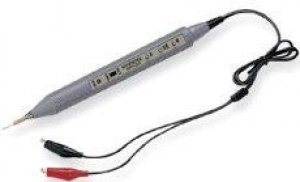

The GPG-2A logic pulser can be used to perform in-circuit testing of TTL, CMOS, and many other logic devices at a maximum of 50MHz. A Short 10 sec pulse width assures that no damage will occur to circuits while testing. With a weight less than 50g, a non-slip grip and, an external sync input, GPG-2A provides comfort and reliability for various troubleshooting tasks.
Specification:
LOGIC PULSER | |
Sync Input Impedance | 1MΩ |
Pulse Rate | 0.5/400Hz |
Pulse Width | 10mS |
Output Current | 100mA sink/source |
Square Wave Output | 5mA sink/source |
Operation Voltage | 5 ~ 15V DC |
Operation Voltage Protection | 20V DC (maximum 30 sec) |
Sync Output Protection | 120V DC (maximum 30 sec) |
Measurement Point Protection | 35V DC (maximum 30 sec) |
DIMENSIONS & WEIGHT | |
18(W) x 210(H) x 18(L) mm Approx. 40 g |
Ordering Information:
GPG-2A Logic Pulser
