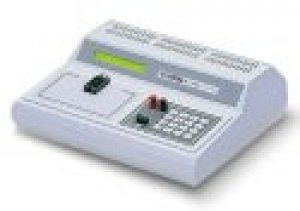

GW INSTEK GUT-7000

Features:

※ Reliable Desktop Design
※ User Friendly Set Up and Operation
※ 16 x 1 Character 9 x 7 Dot Matrix LCD Display
※ Built in 6 Functions and 10 Numerical Keys
※ The Following IC Series Can be Tested Under ±5V ~ ±24V : Timer, OP Amp, Comparator, Regulator, Zener, Photo Coupler, Communications IC, Driver, Switching Power Supply IC
※ Auto Identifies the Unknown ICs and Lists the Same Function IC Number
※ Various BUZZER Sounds to Present the Test Results FAIL or PASS

Description:

Bench-Top Linear IC Tester.

The GUT-7000 is a desktop Linear IC tester. The GUT-7000 has 10 numerical keys and functions such as Auto Identify, Type, Beep, Test and Search. Various buzzer sounds notify users of test results, a feature suitable for educational training.

Description:

SUPPORTED DEVICES
OP (operational amplifiers, comparators) LM101;LM107;LM108;LM113;LM124;LM148;LM158;LM201;LM207;LM208;
LM218;LM224;LM248;LM258;LM307;LM308;LM310;LM318;LM324;LM348;
LM358;LM1458;LM2900;LM2902;LM2904;LM3900;LMC660;
CA358;CA3130;CA3140;CA3160;CA3240;CA3260;CA3401;
TL022;TL061;TL062;TL064;TL071;TL072;TL074;TL081;TL082;TL084;TL094;
MC3303;MC3403;MC3503;MC34004;NE5532;NE5534;
LF347;LF351;LF353;LF355;LF356;LF357;LF411;LF412;
ICL7611;ICL7621;ICL7641;ICL7642;AD648;AD711;AD712;
LT1013;LT1014;RC4558;UA741;UA747;UA748;
OP07;OP27;OP37;OP42;OP90;OP97;OP290;OP490;
TLC252;TLC272;LP124;LP324;HA17324;UPC451;C4082
Comparators LM139;LM193;LM239;LM293;LM339;LM393;LM2901; LM2903;LM3302;
LP239;LP339;LP2901;TLC339;TLC393
Opto (optocouplers) 4N25;4N26;4N27;4N28;4N29;4N32;4N33;4N35;
4N36;4N37;4N38;4N45;4N46;CNY75;H11A1;H11B1;
H11D1;H11D2;H11D3VH11D4;K827P;K847P;MCT2;
PC817;PC827;PC837;PC847;TIL111;TIL116
Voltage Regulators UA7805..(LM2930-5.0, LM2931-5.0,LM2940CT-5.0);
UA7806;UA7808;UA7809;UA7810;UA7812;UA7815;
UA7818;UA7824;UA7905;UA7908;UA7912;UA7915;
UA7924;LM217;LM317;ZENER
Special Functions Device NE555;NE556;TLC555;TLC556;4016;4066;LM723
Transistor Array ULN2001;ULN2003;ULN2004;ULN2005
TEST VOLTAGE
  ±5V ~ ±24V
TEST SOCKET
  One Position for 24 Pin IC Socket
DISPLAY
  16x1 Characters, 9x7 dot Matrix, LCD Display
POWER SOURCE
  AC100V~240V±10%, 50/60Hz
DIMENSIONS & WEIGHT
  335(W) x 105(H) x 300(D)mm, Approx. 1.5kg

Accessories:

User manual x1, Power cord x1

Ordering Information:



GUT-7000 Linear IC Tester

ACCESSORIES :
User manual x1, Power cord x1
