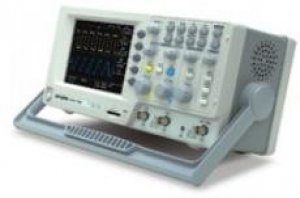

GW INSTEK GDS-1000 Series

Features:

* 100/60/40/25 MHz Bandwidth with 2 Input Channels
* 250MSa/s Real-Time and 25GSa/s Equivalent-Time Sampling
* 4k Memory Length per Channel
* Peak Detect as Fast as 10ns
* Save/Recall of 15 Front Panel Settings & Waveforms
* 5.6" TFT Color Display
* 19 Auto Measurements
* Arithmetic Operators - Add, Subtract, FFT
* USB Port for PC Connection

Description:

The GDS-1000 Series offers 100MHz, 60MHz, 40MHz and 25MHz digital storage oscilloscopes with 5.6" color TFT LCD displays. With dual sampling modes, a 4000 point record length, a real-time sampling rate of 250MSa/s and an ET sampling rate of 25GSa/s, the GDS-1000 Series DSO provides an excellent balance of performance between memory length and sampling speed. Other major features include user-friendly menu tree operations, compact size, ergonomic design, USB PC connectivity and convenient SD/USB memory card support. The GDS-1000 Series is designed to meet today's most demanding engineering requirements and budgets.




USB & SD INTERFACE
With the front panel featuring an SD storage slot, accessing your data is easier than ever before. The GDS 1000 series is able to capture image screen shots or waveform data and save it all onto an SD card quickly and easily with one button press. The panel settings can also be saved. An USB port on the back lets you connect to a PC to control the DSO remotely, and save all your data as well as set-ups.

WAVEFORM SAVING AND AUTOMATIC MEASUREMENT
A total of 15 waveforms can be saved into memory to be displayed at a later time. Two saved reference waveforms and two live waveforms can be compared on the screen at the same time. All signal time and voltage related measurements can be shown on the screen simultaneously in real-time via the Measure key press.

SOPHISTICATED MEASUREMENT FUNCTIONS

Several acquisition modes and 19 auto measurement functions help you to accurately measure the characteristics of waveforms. The advanced auto-set function lets the GDS-1000 Series automatically catch and display waveforms quickly. The arithmetic functions and FFT functions keep you aware of updated measurement results in real time. With little effort, the GDS-1000 Series can provide the right information for test results.

ENHANCED CAL SIGNAL OUTPUT

The GDS-1000 Series has an enhanced 1kHz calibration signal. Its output frequency is adjustable from 1 kHz to 100 kHz and has an adjustable duty cycle of 5%~95%. Due to the flexible output, the calibration output can also be used as a basic signal generator for other applications.

AUTOSET DISABLE FUNCTION

For educational purposes, instructors might not want to use the Autoset function on the DSO when they are teaching how to use oscilloscopes. On the GDS-1000 Series, the Autoset function can be disabled, allowing students to manually operate the oscilloscope functions to further enrich their learning experience.

FREEWAVE PC SOFTWARE

Freewave DSO remote control and monitoring software is fully supported for the GDS-1000 series DSOs and is available free of charge from the GW Instek website. Freewave lets you remotely monitor the DSO, capture waveform data or even capture screenshots. Via a USB connection, Freewave is able to provide near-realtime monitoring and control. Flexible saving options allow you to capture data for later analysis and observation. Screen images can be captured to bitmap or jpeg formats. Waveform data can be saved to CSV for spreadsheet manipulation or computer analysis. Waveforms can also be saved as AVI movies to observe signal variation over time.

GUARANTEED PROTECTION

By providing the Global Lifetime Warranty Program for the GDS-1000 digital storage oscilloscope series, we believe you can have the same confidence as we do in the quality of each GDS-1000 DSO. By purchasing a GDS-1000, you can be assured of a highly economical, low maintenance, quality DSO backed with the protection of the LifeTime Warranty program. The Lifetime Warranty Program guarantees customers will be supported regardless of their location. Customers will receive at least 5 years of full support even after production has ceased. For more details and applicable conditions regarding the LifeTime Service program, please visit the GW Instek website www.gwinstek.com/llw or consult your nearest distributor.



Specification:


GDS-1022
GDS-1042
GDS-1062
GDS-1102
VERTICAL
Channels
2
2
2
2
Bandwidth
DC ~ 25MHz (-3dB)
DC ~ 40MHz (-3dB)
DC ~ 60MHz (-3dB)
DC ~ 100MHz (-3dB)
Rise Time
<14ns Approx.
<8.7ns Approx.
<5.8ns Approx.
<3.5ns Approx.
Sensitivity 2mV/div ~ 5V/div (1-2-5 increments)
Accuracy ±(3% x |Readout|+0.1 div + 1mV)
Input Coupling AC, DC & Ground
Input Impedance 1M±2%, ~16pF
Polarity Normal & Invert
Maximum Input 300V (DC+AC peak), CATII
Waveform Signal Process + , - , FFT
Offset Range

2mV/div ~ 50mV/div : ±0.4V
100mV/div ~ 500mV/div : ±4V
1V/div ~ 5V/div : ±40V
Bandwidth Limit 20MHz (-3dB)
TRIGGER
Sources CH1 , CH2 , Line , EXT
Modes Auto, Normal, Single, TV, Edge, Pulse Width
Coupling AC , DC , LF rej. , HF rej. , Noise rej.
Sensitivity DC ~ 25MHz : Approx. 0.5div or 5mV
25MHz ~ 100MHz: Approx. 1.5div or 15mV
EXT TRIGGER
Range ±15V
Sensitivity DC ~ 30MHz : ~ 50mV ; 30M ~ 60MHz : ~100mV
Input Impedance 1MΩ±2% , ~ 16pF
Maximum Input 300V (DC AC peak) , CATII
HORIZONTAL
Range 1ns/div ~ 10s/div (1-2.5-5 increments); ROLL : 250ms/div ~ 10s/div
Modes Main, Window, Window Zoom, Roll, X-Y
Accuracy ±0.01%
Pre-Trigger 10 div maximum
Post-Trigger 1000 div
X-Y MODE
X-Axis Input Channel 1
Y-Axis Input Channel 2
Phase Shift ±3° at 100kHz
SIGNAL ACQUISITION
Real-Time Sample Rate 250MSa/s maximum
Equivalent Sample Rate 25GSa/s maximum
Vertical Resolution 8 Bits
Record Length 4K Dots maximum
Acquisition Mode Normal, Peak Detect, Average
Peak Detection 10ns (500ns/div ~ 10s/div)
Average 2 , 4 , 8 , 16 , 32 , 64 , 128 , 256
CURSORS AND MEASUREMENT
Voltage Measurement Vpp , Vamp , V avg , Vrms , Vhi , Vlo , Vmax , Vmin , Rise Preshoot/Overshoot , Fall Preshoot/Overshoot
Time Measurement Freq , Period , Rise Time , Fall Time , Positive Width , Negative Width , Duty Cycle
Cursors Measurement Voltage difference between cursors (ΔV)
Time difference between cursors (ΔT)
Auto Counter


Resolution : 6 digits
Accuracy : ±2%
Signal Source: All available trigger source except the Video trigger mode

CONTROL PANEL FUNCTION
Autoset Automatically adjusts Vertical VOLTS/DIV, Horizontal TIME/DIV, and Trigger level
Save Setup Up to 15 sets of measurement conditions
Save Waveform 15 sets of waveform
DISPLAY
TFT LCD Type 5.6 inch
Display Resolution 234 (Vertically) x 320 (Horizontally) Dots
Display Graticule 8 x 10 divisions
Display Brightness Adjustable
INTERFACE
USB Slave Connector USB1.1 & 2.0 full speed compatible (printers and flash disk not supported)
SD Card Slot Image (BMP), waveform data (CSV), and setup (SET)
POWER SOURCE
Line Voltage Range AC 100V ~ 240V , 48Hz ~ 63Hz , Auto selection
MISCELLANEOUS
Multi-Language Menu Available
Online Help Available
DIMENSIONS & WEIGHT
  310(W) x 142(H) x 140(D)mm; Approx. 2.5kg

Accessories:

User manual x 1, Power Cord x 1
Probe-GTP-060A-4 : 60MHz ( 10 : 1/1 :1 ) Switchable Passive Probe for GDS-1022/1042 (one per channel)
Probe-GTP-060A-2 : 60MHz ( 10 : 1/1 :1 ) Switchable Passive Probe for GDS-1062 (one per channel)
Probe-GTP-100A-2 : 100MHz ( 10 : 1/1 :1 ) Switchable Passive Probe for GDS-1102 (one per channel)

Optional Accessories
GSC-006  Soft carrying case
GTL-110  Test lead, BNC-BNC heads
GTL-242  USB 2.0 A-B type cable

Ordering Information:

GDS-1022 25MHz, 2-channel, Color LCD Display DSO
GDS-1042 40MHz, 2-channel, Color LCD Display DSO
GDS-1062 60MHz, 2-channel, Color LCD Display DSO
GDS-1102 100MHz, 2-channel, Color LCD Display DSO
