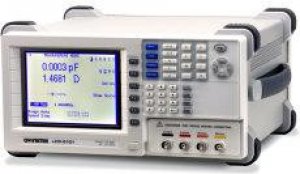

GW INSTEK LCR-8101 (Replaced by LCR-8101G)

Features:

※ Test Frequency 20Hz ~ 1 MHz
※ Large LCD Display
※ 6 digit Measurement Resolution
※ 0.1% Basic Measurement Accuracy
※ Multiple Step Mode
※ DC Resistance Measurement
※ Comprehensive Measurement Functions
※ Monitoring of DUT Voltage and Current
※ Pass/Fail Test
※ Standard Interface : RS-232 & GPIB
※ Optional : Graph Mode

Description:

20Hz-1MHz, LCD Display, 0.1% Basic Accuracy.


The LCR-8101 1MHz precision LCR meter provides accuracy and versatility for a wide range of component measurements, even including DC resistance measurement and Voltage/Current monitoring. High resolution and accuracy provide precise measurement results which help reconstruct component characteristics. The Multi-Step function allows customized measurements with Pass/Fail tests all according to a user’s requirements. Parameters and limitations are defined separately for each program step. GPIB and RS-232C interface are installed as standard features for controlling the instrument and reading the measurement results. The Optional Graph Mode can display component characteristics in graphs over a wide frequency range or for different driver voltages. The rich features of the LCR-8101 lighten your measurement workload at a very competitive price.

Specification:

TEST FREQUENCY
20Hz ~ 1MHz, 5 Digits, ±0.005%
INPUT IMPEDANCE
100Ω
BASIC ACCURACY
±0.1% (R, Z, X, G, Y, B, L, C)
TEST SPEED
AC DC
MAX: 75mS MAX: 30mS
FAST: 150mS FAST: 60mS
MEDIUM: 450mS MEDIUM: 120mS
SLOW: 600mS SLOW: 900mS
TEST SIGNAL LEVELS
10mV~2Vrms, 1mV/Step, 2%±5mV
SHORT CIRCUIT CURRENT
Max. 20mA
MEASUREMENT RANGES
R, Z, X 0.1mΩ ~ 100MΩ
G, Y, B 10nS ~ 1000S
L 0.1nH ~ 100kH
C 0.01pF ~ 1F
D 0.0001 ~ 9.9999
Q 0.1 ~ 9999.9
θ -180° ~ +180°
Rdc 0.1mΩ ~ 100MΩ
MEASUREMENT PARAMETERS
Impedance (Z), Phase Angle (θ), Inductance (L), Capacitance (C),
AC Resistance (Rac), Quality Factor (Q), Dissipation Factor (D),
Admittance (Y), Conductance (G), Reactance (X), Susceptance (B),
DC Resistance (Rdc)
SERIES OR PARALLEL EQUIVALENT CIRCUIT
C + R, C + D, C + Q, L + R, L + Q, L + D
SERIES EQUIVALENT CIRCUIT ONLY
X + R, X + D, X + Q
PARALLEL EQUIVALENT CIRCUIT ONLY
C + G, B + G, B + D, B + Q, B + R, L + G
POLAR FORM
Z + Phase Angle, Y + Phase Angle
LCD DISPLAY
320 x 240 DOT-MATRIX
INTERFACE
RS-232, GPIB
POWER SOURCE
AC 115V±10% / 230V±10 (Selectable), 50/60Hz
DIMENSIONS & WEIGHT
330(W) x 170(H) x 340(D)mm, Approx. 5kg

Accessories:

User manual x1, Power cord x1, LCR-06A x1


OPTION
Opt.01 Graph Mode (Factory Installed)


OPTIONAL ACCESSORIES
LCR-05  Test Fixture for Axial & Radial Leaded Components
LCR-06A  Kelvin Clip Test Lead
LCR-07  Test Fixture, Two-Wire with Alligator Clips
LCR-08  Test Fixture (Tweezers) for SMD / Chip Components
LCR-09  Test Fixture for SMD / Chip Components
LCR-13  Test Fixture for SMD / Chip Components
GRA-404  Rack Adapter Panel, Rack Mounting (19", 4U)
GTL-232  RS-232 Cable, 9-pin Female to 9-pin, null Modem for Computer
GTC-001  Instrument Cart
GTC-002  Instrument Cart

Ordering Information:



LCR-8101  1MHz Precision LCR

ACCESSORIES :
User manual x1, Power cord x1, LCR-06A x1


OPTION
Opt.01 Graph Mode (Factory Installed)


OPTIONAL ACCESSORIES
LCR-05  Test Fixture for Axial & Radial Leaded Components
LCR-06A  Kelvin Clip Test Lead
LCR-07  Test Fixture, Two-Wire with Alligator Clips
LCR-08  Test Fixture (Tweezers) for SMD / Chip Components
LCR-09  Test Fixture for SMD / Chip Components
LCR-13  Test Fixture for SMD / Chip Components
GRA-404  Rack Adapter Panel, Rack Mounting (19", 4U)
GTL-232  RS-232 Cable, 9-pin Female to 9-pin, null Modem for Computer
GTC-001  Instrument Cart
GTC-002  Instrument Cart
