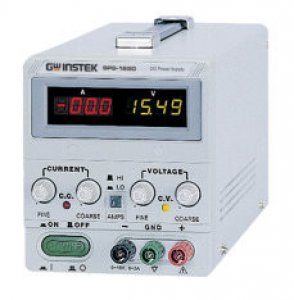

GW INSTEK SPS Series

Features:

Dual Measurement Display
0.01 % High Regulation
Constant Voltage and Constant Current Operation
High Efficiency
High Power Density
Over Voltage Protection
Remote Output ON/OFF Control

Description:

The SPS-Series are single output, 360W, switching DC power supply. OVP protects the SPS-Series and their load from unexpected conditions. High regulation is maintained at 0.01%. Remote sensing adds extra level of precision by compensating cable losses between loads. Turning the output On/Off from external device is available through remote control terminals. The SPS-Series are an ideal solution for power-efficient bench-top or portable applications requiring high regulation.



Specification:

OUTPUT

SPS-1230
SPS-1820
SPS-2415
SPS-3610
SPS-606
Voltage
0~12V
0~18V
0~24V
0~36V
0~60V
Current
0~30A
0~20A
0~15A
0~10A
0~6A
CONSTANT VOLTAGE OPERATION
Line Regulation < 5mV
Load Regulation < 5mV
Ripple & Noise < 5mVrms, 100mVp-p 20Hz ~ 20MHz
Recovery Time < 500μS ( 50% Load change, Minimum load 0.5A )
Temp. Coefficient < 100 ppm/°C
Output Range 0 to rating voltage continuously adjustable
CONSTANT CURRENT OPERATION
Line Regulation < 3mA
Load Regulation < 3mA
Ripple Current < 3mArms (SPS-606)
< 5mArms (SPS-3610)
< 10mArms (SPS-2415)
< 10mArms (SPS-1820)
< 30mArms (SPS-1230)
Output Range 0 to rating current continuously adjustable (Hi/Lo range switchable)
METER
Type 3 1/2 Digit 0.39" LED Display
Accuracy ±( 0.5% of rdg + 2 digits )
INSULATION
Chassis and Terminal 20MΩ or above (DC 500V)
Chassis and AC Cord 30MΩ or above (DC 500V)
POWER SOURCE
  AC 115V/230V ±15%, 50/60Hz
DIMENSIONS & WEIGHT
  128(W) x 145(H) x 285(D)mm
Approx. 3.2kg

Accessories:

User Manual x 1, Power Cord x 1
Test Lead GTL-203*1

Ordering Information:

SPS-1230 360W D.C. Switching Power Supply
SPS-1820 360W D.C. Switching Power Supply
SPS-2415 360W D.C. Switching Power Supply
SPS-3610 360W D.C. Switching Power Supply
SPS-606 360W D.C. Switching Power Supply
