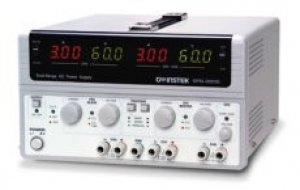

GW INSTEK SPD-3606

Features:

Three independent, isolated output
CH3 adjustable output : 0.1~5V/3A
High efficiency power conversion (up to 25% more than traditional power supply)
Remote output on/off control
OVP to protect the DUT

OTP to protect SPD-3606 to decreas the repair rate
Compact size, light weight
Low Fan acoustic noise with fan speed control circuit
Voltage/current protection knob (option)

Description:

The SPD-3606 DC power supply provides 375W output capacity, three isolated outputs with dual-range for CH1 & CH2, highly efficient power conversion, low noise, high reliability, thorough protection,excellent value, and a compact size. The SPD-3606 creates a new benchmark to satisfy mainstream power supply demands. CH1 & CH2 offer dual-range output at either 30V/6A or 60V/3A per channel to accommodate a wide range of applications. The SPD-3606 supports serial and parallel tracking, allowing the CH1 and CH2 to be internally connected in series or parallel to provide flexible output (30V/12A, 60V/6A, or 120V/3A). High power density and high power conversion efficiency let the SPD-3606 consume less energy, making SPD-3606 a greener power supply. In addition, the high power density makes the SPD-3606 weigh less than half and occupy much less space compared to linear power supplies. To avoid damage caused by improper operation, it also has OVP and OTP. The dual range AC input accepts both 115V and 230V inputs. When the instrument is on, devices can be connected and voltage/current levels can be adjusted safely from the front panel by turning off the output via Output on/off key. The optional voltage/current protection knobs can be used to prevent accidental change of the output levels. These knobs are useful for automated testing at fixed output levels, such as in assembly lines or product inspections.

Specification:

OUTPUT RATINGS

CH1/CH2 Independent 0 ~ 30V / 0 ~ 6A ; 0 ~ 60V / 0 ~ 3A
CH1/CH2 Series 0 ~ 60V / 0 ~ 6A ; 0 ~ 120V / 0 ~ 3A
CH1/CH2 Parallel 0 ~ 30V / 0 ~ 12A ; 0 ~ 60V / 0 ~ 6A
CH3 0.1 ~ 5V / 3A
VOLTAGE REGULATION
Line ≦0.01% + 3mV
Load ≦0.01% + 5mV (rating current ≦6A)
≦0.01% + 8mV (rating current ≦12A)
Ripple & Noise ≦5mVrms (5Hz ~ 1MHz )
≦ 50mVpp (20Hz ~ 20MHz)
Recovery Time ≦100μs(50% load change, minimum load 0.5A)
CURRENT REGULATION
Line ≦0.2% + 3mA
Load ≦0.2% + 3mA
Ripple & Noise ≦3mArms
TRACKING OPERATION
Tracking Error ≦0.5% + 10mV of master
Series Regulation ≦300mV
Ripple & Noise ≦10mVrms (5Hz ~ 1MHz)
≦100mVpp (20Hz ~ 20MHz)
OUTPUT ON/OFF RESPONSE TIME
Voltage Up (10% ~ 90%) ≦100ms ( ≦ 95% rating load)
Voltage Down (90% ~ 10%) ≦100ms ( ≧ 10% rating load)
OVP
Accuracy ± (0.5% of reading + 0.5V)
METER
Type 3 1/2 digits 0.5" LED display
Accuracy ± (0.5% of reading + 2 digits)
Resolution 100mV/10mA
INSULATION
Chassis & Terminal 100MΩ or above (DC 1000V)
Chassis & AC code 100MΩ or above (DC 1000V)
TEMPERATURE COEFFICIENT
Voltage ≦ 100ppm/°C + 3mV
Current ≦ 150ppm/°C + 3mA
REMOTE CONTROL
  Output On/Off
FAN NOISE
  ≦50dB
OPERATION ENVIRONMENT
  Ambient temperature 0 ~ 40℃
Relative humidity ≦ 80%
STORAGE ENVIRONMENT
  Ambient temperature -10 ~ 70℃
Relative humidity ≦70%
POWER SOURCE
  AC 115V/230V ±15%, 50/60Hz
ACCESSORIES
  User manual x 1
Power code x 1
Test lead GTL-104 x 2, GTL-105 x 1 or
European test lead GTL-201 x 1, GTL-203 x 1, GTL-204 x 2
DIMENSIONS & WEIGHT
  255 (W) x 145 (H) x 265 (D) mm
Approx. 6kg

Accessories:

User Manual X 1, Power Cord X 1
Test Lead GTL-104*2 ; GTL-105*1
European Test Lead GTL-201* 1; GTL-203*1;GTL-204*2

Ordering Information:

SPD-3606 Multiple Output Dual Range D.C Power Supply
