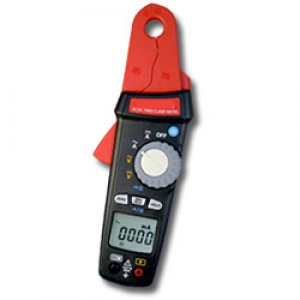

CEN0031B-260 MA HIGH RESOLUTION CLAMP METER WITH LED LIGHT (AC/DC, TRMS)

Category: Clamp meters

This is a perfect instrument for diagnostic and maintenance purpose in associate with low current monitoring or troubleshooting. It measures both AC and DC current with very stable 1 mA resolution. It is an ideal choice not only in general industrial filed, but also automotive application to measure sleeping or starting current. The built-in backlit LCD and bright LED flashlight make it easier to work under the hood.

Features:

  • 1mA resolution
  • Thin jaw profile for easier wire measurement
  • TRMS for all applications
  • LED working light
  • Backlit LCD
  • 600V CATIII





Specifications:


AC Current
Range Resolution
Accuracy
40Hz~1KHz
5000mA 1mA 1.8%+5
50A 0.01A
100A 0.01A 5%+5

DC Current
Range Resolution
Accuracy
5000mA 1mA 1.8%+5
50A 0.01A
100A 0.01A 5%+5

AC Voltage
Range Resolution
Accuracy
40Hz~1KHz
50V 0.01V 1.2%+5
300V 0.1V

DC Voltage
Range Resolution Accuracy
50V 0.01V 1%+2
300V 0.1V


Resistance
Range
Resolution
Accuracy
500Ω
0.1Ω
1%+2
5KΩ
50KΩ
10Ω
500KΩ
100Ω


Continuity
Range
Active Region
< 120Ω

Jaw opening size: 13mm
Battery: 1.5V AAA x 2
Dimensions: 220 x 72 x 35mm
Weight: 210g
*The specifications are subjects to change without prior notice.

Standard Accessories:

Batteries, test lead, instruction manual, carrying case
