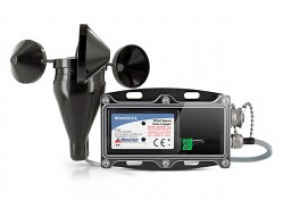

MAD0005-WIND101AV2 DATA LOGGER KIT WITH 25' CABLER AND WINDCUPS ANEMOMETER


 Complete Wind Speed Data Logging System. Includes Pulse101A Data Logger, Weather Proof Enclosure, 3-Cup Anemometer, and Software and Interface Cable Package.

The Wind101A is a complete system to accurately measure and record wind speed. This low cost wind speed recording system comes complete with the Pulse101A data logger, weatherproof enclosure, a three-cup anemometer and all the necessary cabling to quickly get up-and-running.

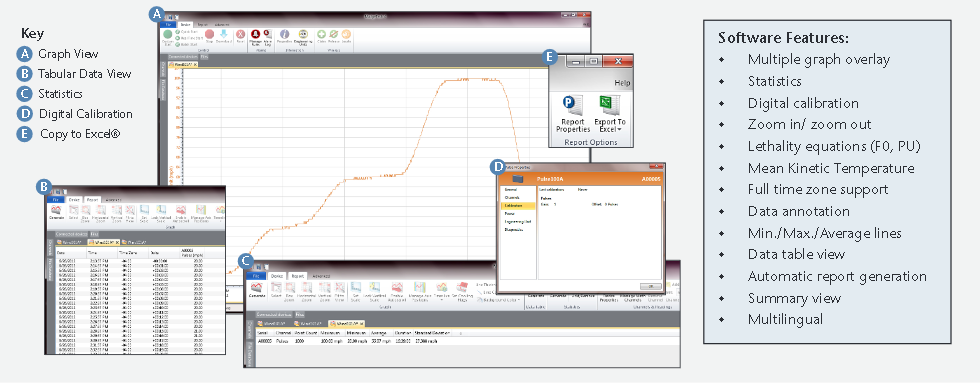

The Pulse101A data logger can measure and record data for up to 500,000 readings and the storage medium is non-volatile, solid state memory, providing maximum data security even if the battery becomes discharged. The device can be started and stopped directly from a computer using our user-friendly software.

WIND

Gust Survival Speed 214 mph (95 m/s)
Threshold Wind Speed 1.75 mph (0.75 m/s)
Maximum Measurable Speed 100 mph (contact factory about use at higher wind speeds)
Wind Resolution 0.085 mph at a 10 second reading rate
Wind Accuracy ±2 mph 0 to 10 mph, ±2.5 % of reading 10 to 100 mph
Rotation Diameter 7.5 in (191 mm)
Mount Accepts 0.5 in (13 mm) dia. Mast

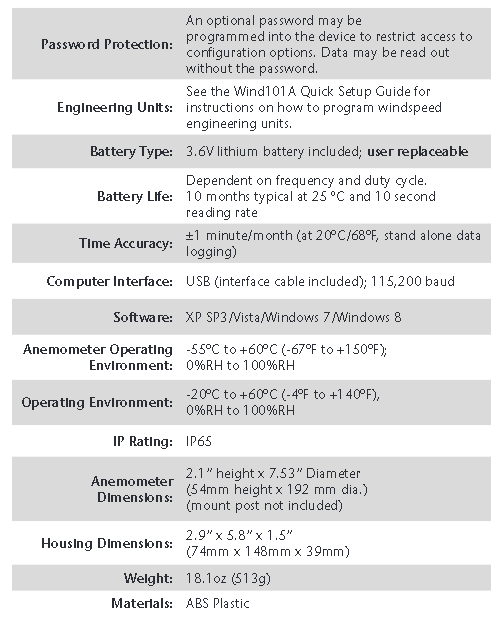

GENERAL

Memory 500,000 readings;
software configurable memory wrap
250,000 readings in multiple start/stop mode
Baud Rate 115,200
LED Indicators Red and Green
Push-Button Start Yes
Battery Life Dependent on frequency and duty cycle. 10 months typical at 25 °C and 10 second reading rate
Dimensions Data Logger: 1.4 in x 2.5 in x 0.6 in (36 mm x 64 mm x 16 mm)
Operating Environment -20 °C to +60 °C, 0 %RH to 100 %RH
