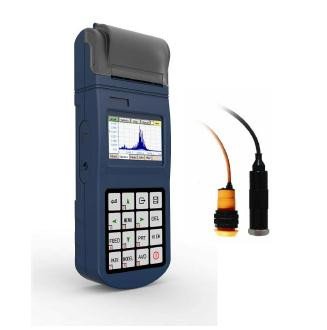

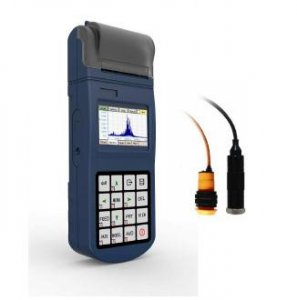

LUT0245B-ADVANCED GRAPHICAL DIGITAL VIBRATION METER WITH PRINTER (WITH DATALOGGING, RGB DISPLAY, METRIC/ IMPERIAL UNITS)

Category: Vibration meters

Complete vibration monitor


-Velocity Measurement
-Acceleration Measurement

-Displacement Measurement

-Direct Graphical Analysis



LUT0245B uses piezoelectric acceleration transducer to convert vibration signal into electric signal. Then by analyzing input signal, results including RMS of velocity values, peak-peak valueof displacement, peak values of acceleration or real-time spectral charts are displayed or printed out. It can not only measure the three parameters, but also for rotational speed measuring.



The vibration meter is designed to test conventional vibration, especially the vibration test in rotating and reciprocating machines. It can be used not only to test the acceleration, velocity, and displacement of vibration as well as rev (or inherent frequency), but also perform simple failure diagnosis.



The technical specifications of LUT0245B comply with the requirements of GB 13823.3. LUT0245B is widely used in machinery, power, metallurgy, automobile and other industrial fields.



Configuration:



Standard configuration

NO.

Item

Quantity

1

Main unit

1

2

Power Adapters

(input:220V/50Hz,output:9V/1000mA)

Choose one

Power Adapters

(input:110V/50Hz,output:9V/1000mA)

3

Piezoelectric sensors

1

4

Magnetic seat (with 2 bolts)

1

5

Manual

1

6

Package case

1

Optional configuration

1

Speed transducer (Lacer)

1

2

Software

1

3

Probe

1

4

Communication cable

1



Specifications:



Testing range

(Metric)

Acce: 0.1 ~ 205.6 m/s2(peak)

Velo: 0.1 ~ 400.0 mm/s(RMS)

Disp: 0.001 ~ 9.0 mm(peak-peak)

Testing range

(Imperial)

Acce: 0.01 ~ 20.98 g(peak)

Velo: 0.01 ~ 15.75 in/s(RMS)

Disp: 0.1 ~ 354.3 mil(peak-peak)

Freq range

Acceleration:

10Hz ~ 200Hz, 10Hz ~ 500Hz,10Hz ~ 1KHz, 10Hz ~ 10KHz

Velocity:10Hz ~ 1KHz

Displacement:10Hz ~ 500Hz

Frequency resolution

0.25Hz

Data memory

100 × 80 pieces of data and

100 spectrums

Software

Yes

Temp

0 ~ 40

Tolerance

±5%

Speed measuring range

30 ~ 300000 rpm

corresponding to 0.5 ~ 5000Hz

Measuring distance

0.15 ~ 1m

Display

TFT

320×200 pixels with RGB

Data interface

USB

Overall dimensions

212×80×35

Printer

Integrated thermal printer

Weight

320g

Battery

Rechargeable Li battery,1500mAh

Continuous working time

About 50h
