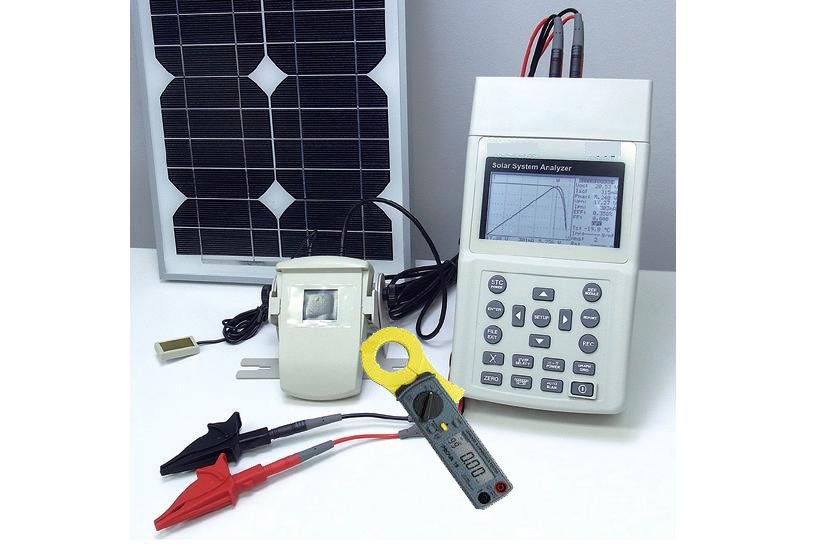

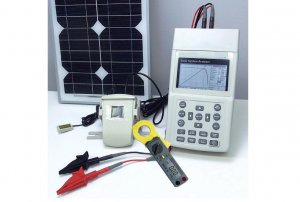

PRO0044B-1010V2 (NEW 1011) SOLAR SYSTEM ANALYZER 1000V, 12A


●I-V curve test for solar system

●Continuous monitoring output power, watt hour, efficiency of solar system and inverter

●Max. solar system power (Pmax) search by Auto-scan: 1000V, 12A

●Max. voltage (Vmaxp) and Max. current (Imaxp) at Pmax

●Voltage at open circuit (Vopen), Current at short circuit (Ishort)

●Temperature measurement of solar panels, Irradiance measurement of sun light, series resistance (Rs) calculation of solar panels

●Real time data logging, built-in calendar clock

●Efficiency (%) calculation of solar panels

●Conversion of I-V curve under OPC to data under standard test condition (STC) based upon IEC standard

●Provide Operating Condition (OPC) and Standard Test Condition (STC) test reports for   verification of solar panel performance (OK, or NO OK)

●With optional power clamps (SOLAR 15 and SOLAR 21), measure/record DC power output of solar system and AC power output of inverter (1 phase or balanced 3 phase); calculate efficiency of DC to AC power conversion and max. power

●Parameter setting of solar panels; setting for number of solar panels in a string

●Rechargeable lithium battery, low battery warning

●USB cable for PC





It can be used to perform tests and data analysis on a single solar panel and a PV system with multiple solar panels connected in a string (series). It also determines the inverter efficiency with solar panels connected.



Who need this Solar System Analyzer?



Solar panel manufacturer, installer, pv design engineer, pv system engineer, pv maintenance engineer



What advantages do you gain by using the Solar System Analyzer?



Features:



●I-V curve test for solar system



●Continuous monitoring output power, watt hour, efficiency of solar system and inverter



●Max. solar system power (Pmax) search by Auto-scan: 1000V, 12A



●Max. voltage (Vmaxp) and Max. current (Imaxp) at Pmax



●Voltage at open circuit (Vopen), Current at short circuit (Ishort)



●Temperature measurement of solar panels, Irradiance measurement of sun light, series resistance (Rs) calculation of solar panels



●Real time data logging, built-in calendar clock



●Efficiency (%) calculation of solar panels



●Conversion of I-V curve under OPC to data under standard test condition (STC) based upon IEC standard



●Provide Operating Condition (OPC) and Standard Test Condition (STC) test reports for   verification of solar panel performance (OK, or NO OK)



●With optional power clamps (SOLAR 15 and SOLAR 21), measure/record DC power output of solar system and AC power output of inverter (1 phase or balanced 3 phase); calculate efficiency of DC to AC power conversion and max. power



●Parameter setting of solar panels; setting for number of solar panels in a string



●Rechargeable lithium battery, low battery warning



●USB cable for PC



 DC Voltage Measurement

Range

Resolution

Accuracy

1 ~ 1000 V

0.01 V / 0.1 V / 1 V

± 1 % ± (1 % of Voc ± 0.1 V)



DC Current Measurement

Range

Resolution

Accuracy

0.1 ~ 12 A

1 mA / 10 mA

± 1 % ± (1 % of Isc ± 9 mA)



DC Current Simulation

Range

Resolution

Accuracy

0.1 ~ 12 A

1 mA / 10 mA

± 1 % ± 9 mA



Irradiance Measurement

Range

Resolution

Accuracy

50 ~ 2000 W/m2

1 W/m2

± 3 % ± 20 dgts



Temperature Measurement

Range

Resolution

Accuracy

-20 ~ 85

0.1

± 1 % ± 1














Location
