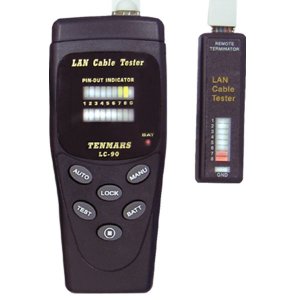

TEN902-LC-90 BASIC LAN CABLE TESTER

Category: Cable Testers

- LCD display.
- Test pin configuration for 10/100 base-T cable, 10 base-2 cable, RJ45/RJ11 modular cables, AT and T 258 A cable, EIA/TIA 568A/568B cables and Token Ring Cables etc.
- Verify cable continuity, opens, shorts and miss-wired.
- Auto and manual scan function.
- Ground wire test.
- Locked status wire function.
- Detected defective wire warning (buzzer).
- Function Keys: ON/OFF, Test, Auto, Lock, Manual.
- Low battery indication.

  • Test Pin Configuration for 10/100 Base-T Cable
  • 10 Base-2 cable, RJ45/RJ11 modular cables
  • Verify cable continuity, open, short and miss wired
  • Auto and Manual Scan
  • Ground Wire Test

isplay

LED

Connectors

RJ45 (8P8C) input/output

Power Supply

9 volt 006P battery

Remote Terminators

Sequence Number#1

Cable Types

Unshielded Twisted Pair (UTP100, CAT III, IV,V
Foil-screened Twisted Pair (FTP100 and 120, CAT III, IV, V
Shielded Twisted Pair (STP150 IBM Type 1 and 6)

Recognize Wiring Schemes

EIA/TIA-568A/B, USOC, 10(100) Base/HUB, BNC/10 Base-2
10(100) Base-T, Token ring

Dimensions (instrument)

130mm (L) x 56mm (W) x 38mm (D)

Dimensions (remote)

72mm (L) x 23mm (W) x 24mm (D)

Weight

250g approx.

Accessories

User's manual, carrying case, 9 volt battery, and
one patch cable (RJ-45 to RJ-45)
