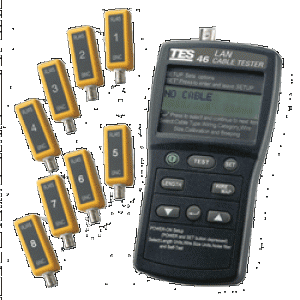

TES0073- 46 CAT-5 Lan Cable Tester (w/distance to fault)

Category: Cable Testers
  • Tests : UTP. FTP. Coax cables, two, three, or four wire pairs in twisted pair cables and test
    all category UTP cables and hardware.
  • Verify end-to-end connectivity per EIA/TIA 568 wiring standard.
  • Detects wiring problems : Opens, Shorts, miswires (Crossed, Reversed, Split pair).
  • Locates wiring/connection errors (distance to the open or shout)
  • Measures cable length
  • Tests : UTP. FTP. Coax cables, two, three, or four wire pairs in twisted pair cables and test
    all category UTP cables and hardware.
  • Verify end-to-end connectivity per EIA/TIA 568 wiring standard.
  • Detects wiring problems : Opens, Shorts, miswires (Crossed, Reversed, Split pair).
  • Locates wiring/connection errors (distance to the open or shout)
  • Measures cable length
  • Easy to use only : One button to select the test and two lines characters LCD display.
  • Low battery, Auto power off, long battery life (60 hours continuous)

Display

Two lines characters LCD display (16 characters each)

Connector

RJ45 and BNC

Category

CAT5

Faults Status

Opens, Shorts, Reversed, Crossed, Split Pair.

Test Type

TEST provides a pass / fail report on the cable under test. In
case a failure has been detected, the display offers additional
diagnostic information.
LENGTH provides the length of each pair (in case a twisted pair
cable is being tested).
WIRE MAP provides the detail wiring for the cable.

Cable Length

Range 2 to 999 ft or 1.0 to 350 m.
Resolution 1 ft or 0.5 m.
Accuracy 5% + 3 ft or 5% + 1 m

Power

6 pcs 1.5V size AAA alkaline battery.

Input Protection

The inputs withstand telephone ringing and loop voltages.

Size / Weight

152 mm x 72 mm x 35 mm / Approx. 360 g

Environment Conditions

Operating : 0 ℃ to +50 ℃ , Storage : -20 ℃ to + 60 ℃

Accessories

Instruction manual , Carry case , One UTP Category 5 patch
cable, One RJ45F - RJ45F female coupler, Cable identifier #1 for the verification of the wire map.
