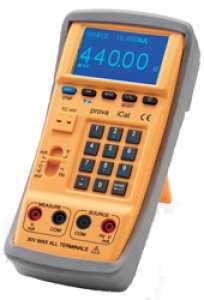

PRO0045-ICAL DOCUMENTING MULTIFUNCTION CALIBRATOR/ARBITRARY FUNCTION GENERATOR




  • iCal is a multifunction calibrator and an arbitrary function generator
  • Unique mapping function allows direct calibration of voltage and temperature
  • Source: mA(4 to 20mA), V(0 to 15V, 0 to 70mV), Hz, sine wave, square wave, triangular wave, truncated sine wave, and user programmable waveforms
  • Measurements: Current (mA), voltage (V, mV), temperature (°C, and °F)
  • Frequency range: (0.3 Hz to 20 kHz)
  • Programmable frequency and phase synthesis of single tone and DTMF for devices such as MP3, MD, and telephone lines
  • The Function Generator can examine transistor DC bias characteristics, and amplifier overload and transient characteristics
  • The iCal can be programmed with a PC or Laptop via the USB port
  • All calibration results can be saved in iCal's memory (2000 records)
  • Data can be saved under different file names for efficient record keeping

SPECIFICATIONS: (23°C ± 5°C)
Current mA: Source (Vopen > 15V), or measured


Range

Resolution

Accuracy

-4mA to -0.005mA

1μA

± 0.03% ± 5 digits

0.005mA to 4mA

1μA

± 0.03% ± 5 digits

4mA to 20mA

1μA

± 0.03% ± 3 digits

20mA to 24mA

1μA

± 0.03% ± 5 digits

Voltage: Source (maximum load 1mA, short circuit protection < 100mA), or measured


Range

Resolution

Accuracy

-3V to -0.005V

0.001V

± 0.03% ± 5 digits

0.005V to 10V

0.001V

± 0.03% ± 5 digits

10V to 15V

0.001V

± 0.03% ± 5 digits

Frequency: Source (10Vpp, 0V offset, square wave, duty cycle = 50%)


Range (Hz)

Input Resolution

Accuracy

0.3 to 99.999

0.1 Hz

0.002 Hz

10 to 999.99

0.1 Hz

0.02 Hz

1000 to 9999.9

0.1 Hz

0.2 Hz

10000 to 20000

1 Hz

2 Hz

General specifications:


AC Adaptor

Input: (110 or 220)Vac, 50/60Hz
Output: 15Vdc, 0.5A

Battery type

Rechargeable Lithium battery, 11.1V, 1600mAh

Operating temperature

0°C to 50°C (32°F to 122°F), 85% RH

Dimensions

213mm x 99mm x 56mm (8.4" x 3.9" x 2.2")

Weight

650g (batteries included), 22.9oz

Accessories included

User's Manual, Software Manual, Software CD, USB Cable, Rechargeable Lithium Battery, AC Adaptor, Test Leads (Black and Red), Alligator Clips (Black and Red), K type thermocouple with dual plugs, Carrying Case
