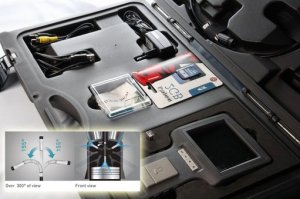

CLASS 1-CIA351A-ULTRA-CLEAR 1M 6.0MM SUPER RESOLUTION TWO-WAY ROTATION INSPECTION CAMERA/VIDEOSCOPE-USA


{youtube}OTKmi7kjngI{/youtube}

  • 3.5 TFT LCD
  • 3.5 " Extra-wide view angle and clear TFT LCD, protected by oil and scratch resistant glass.
  • Snap shot and video recording
  • Snap still images(640x480)
  • Records QVGA resolution (320x240) videos.
  • Instant playback review.
  • SD Card Storage (Max: 32GB)
  • LED brightness adjustment
  • High brightness white LED with intensity adjustment.
  • AV out
  • Support live image on TV monitor.
  • Zoom in and mirror
  • 2X Digital Zoom and horizontal mirror image adjustment.
  • Long duty hour
  • Rechargeable internal Li-Polymer battery lasts for four hours.
  • Insert Tube options
  • **SPECIAL DESIGNED AND PRODUCED BY OUR USA Partner-*SCOPE RESEARCH CORPORATION (California, USA)*.

VGA Resolution, Function Upgrade Probes: Φ6.0mm,









Automobiles (check of and repair of cylinders, mufflers, transmissions, linings, manifolds, frames, etc. )

Aircrafts (Inspection and repair of engines, shafts, landing gears, turbines, etc.)

Ships (Inspection and repair engines, turbines, heat exchangers, pipe lines, etc.)

Railways (Inspection and repair for engine maintenance, power maintenance, electric maintenance, etc.)

Mechanical equipment (internal check of pipes, tanks, steel pipes, tubes, etc.)

Generators (Inspection for cracks on and abrasion of mechanical equipment, boilers, turbines, hydraulic pipes, etc.)

Welding (Inspection of welding on pipes, tanks, steel pipes, tubes, etc.)

General equipment (Internal check of various pipes)

Gas, petroleum, and chemicals (Internal Inspection of gas pipes, oil pipes, heat exchangers, etc.)

Electricity (Internal Inspection and diagnosis of power distributors, transformers, power equipment, etc.)

Manufacture (quality check of engine blocks, containers, LCDs, etc.)

Defense, security, and surveilliance (military, customs, police , firefighting, security companies)

Architecture (Construction engineering, upholstery, house repair, plumbing, ventilation, air condition, etc.)

Exploration, education, and research and experiments.







Specification:







Feature Function



Easy Operate

Quick Snap (JPEG)

Quick Video Record (MPEG4/ASF)

Quick Video/Picture Review

1X / 2X Magnification

Mirror Image Supported

AV OUT




Insertion Tube & Camera System



Image Sensor

CMOS Image Sensor

Resolution (Dynamic/Static)

-

640(H)*480(V) / 640(H)*480(V) , VGA probe only

Tip (Insertion Tube) Diameter

Φ6mm 2 way articulating probe for

Length of Insertion Tube

1m

Housing

Stainless Steel

Material of Tube Connector

Military-standard Metal

Type of Insertion Tube

Semi-Rigid or Soft-Metal

Forward/Side View Quick Switch

Yes

Field of View (F.O.V.)

Horizontal:46°, Vertical:34°, Diagonal: 87.1°

Depth of Field (D.O.F.)

1cm~10cm

Light Source

4 White LED, Brightness adjustable

Working Temperature

0°C~80°C

Water and Oil Resistant

Insertion tube is water and oil resistant (IP67 standard)

Operating Hours

4 hours after being charged for 2 hours

Optional Accessories

Magnet, Hook, Climbing ball




Main Console System(Screen)



System Dimension

117.5*207*37mm

Power

Battery rechargeable Li-Polymer battery 3.7V
Power supply AC100-240V 50-60Hz Power consumption DC5.5 1.8A

4 AA Batteries

Display

3.5"TFT LCD QGVA

Interface

USB 2.0/ AV Out

Video Out Format

NTSC & PAL

Recording Medium

4GB SD Memory Card

Compression Format

MPEG4

Still Image Storage Format

JPEG (640*480)

Video Recording Format

AVI 320*240

Water and Dust Proof

IP55 Water and Dust Protection

Frame Rate

~30 fps

S/N Ratio

42dB or more

Exposure

Automatic

White balance

Fix

Language

27 Languages: English / French / German / Italian / Spanish / Portuguese / Japanese / Traditional Chinese / Simplified Chinese / Danish / Dutch / Polish / Russian / Bulgarian / Turkish / Swedish / Finnish / Norwegian /  Estonian / Lithuanian / Latvian / Hungarian / Czech / Slovak / Slovenian / Romanian / Greek

Certificate

CE, FCC, ROHS

Package Size & Weight
(ABS portable case with outer gift carton)

L55*W9.5*H32CM, NW:2.8KGS, GW:3.2KGS







OPTIONAL ITEMS:



CIA351X3



Carrier Bag - Sunshade. Protection. Easy Carry.

CIA351X1



HOLDING TUBE 990 DIAMETER: 8MM FOR HOLDING 6MM PROBE
