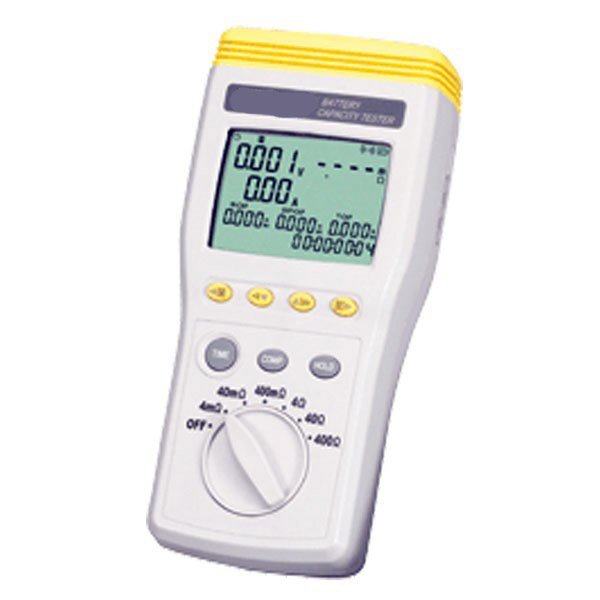

TES0028-33 Advanced Battery Tester

Category: Battery testers

Product Description

  • Test Condition Without Shutting Down Battery.
  • Simultaneously Measure Battery Resistance, Voltage, Current, Temperature.
  • Auto-hold and Auto-data storage.
  • Comparator Function.
  • Rates Conditions as Pass, Warning, or Fail.
  • Memory and Read Function
  • Compact and Lightweight.
  • RS232 PC Interface

Compact storage batteries, Alkali and lead-acid batteries..

0 to 1200AH

Ranges : 4mΩ, 40mΩ, 400mΩ, 4Ω, 40Ω, 400Ω
Resolution : 1μΩ , 10μΩ , 100μΩ , 1mΩ , 10mΩ , 100mΩ
Accuracy : 4mΩ
±(3% reading ±20digits) 40mΩ~400Ω±(0.8% reading ±6digits)

Current : Approx. 40mA, 4mA, 400μA, 40μA, 4μA
Frequency : 1KHz±30Hz

Range : 6V, 60V
Resolution : 1mV, 10mV
Accuracy : ±(0.1%rdg ±6digits)

Range : -20 to 60 (-4 to 140)
Resolution :0.1
/ 0.1
Accuracy : ±1
/ ±1.8

Range : 60A , 600A
Resolution : 0.01A , 0.1A
Accuracy : 60A : ±(2%rdg+20dgt) , 600A : ±(2%rdg+2dgt)

5V max

999 data sets

6000 data sets (only use PC download)

Setting : Resistance upper and lower limits and voltage
throughold limit.
Memory : 99 sets of values

0 to 40 (32 to 104), 80%RH or less, non-condensing.

60VDC

Six AA size 1.5V alkaline batteries

5.5 hours

Approx. 530g including batteries

Approx. 198(L) × 94(W) × 49(H)mm

Clip – type test lead with temperature sensor, Pin – type test lead, 3092CP DCA current adaptor, Zero adjustment board, Instruction manual, batteries, AC adaptor, USB cable, CD PC software, Carrying case.
