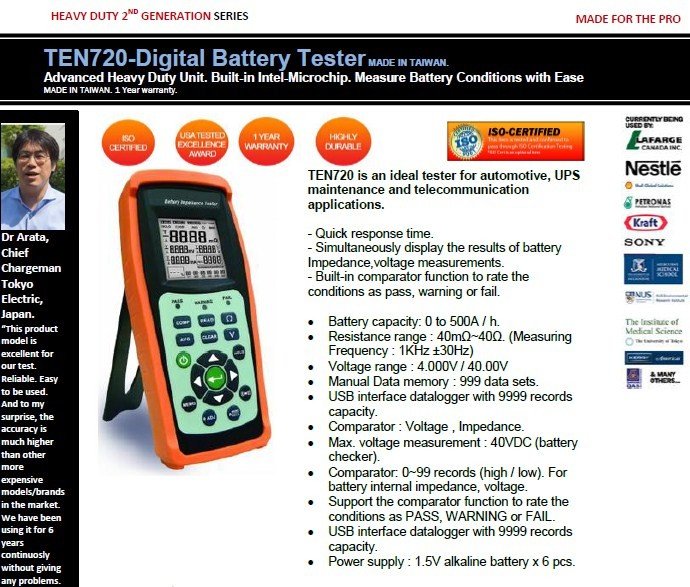

TEN720-DIGITAL BATTERY CAPACITY IMPEDANCE TESTER (2nd generation)

Category: Battery testers

  • TEN720 is an ideal tester for automotive, UPS maintenance and telecommunication applications.


    - Quick response time.
    - Simultaneously display the results of battery Impedance,voltage measurements.
    - Built-in comparator function to rate the conditions as pass, warning or fail.

    • Battery capacity: 0 to 500A / h.
    • Resistance range : 40mΩ~40Ω. (Measuring Frequency : 1KHz ±30Hz)
    • Voltage range : 4.000V / 40.00V
    • Manual Data memory: 999 data sets.
    • USB interface datalogger with 9999 records capacity.
    • Comparator : Voltage , Impedance.
    • Comparator: 0~99 records (high / low). For battery internal impedance, voltage.
    • Support the comparator function to rate the conditions as PASS, WARNING or FAIL.
    • USB interface datalogger with 9999 records capacity.
    • Power supply : 1.5V alkaline battery x 6 pcs.
    • Resistance:
    • Voltage:
    • Temperature:

    Range

    40mΩ

    400mΩ

    40Ω

    Resolution

    10µΩ

    100µΩ

    1mΩ

    10mΩ

    Current

    100mA

    15mA

    1.5mA

    150µA

    Accuracy

    ±(0.8%reading+10dgt)

    Range

    4V

    40V

    Resolution

    1mV

    10mV

    Accuracy

    ±(0.1%reading+10dgt)

    Range

    -20~60(-4~140)

    Resolution

    0.1/0.1

    Accuracy

    ±1/±1.8
