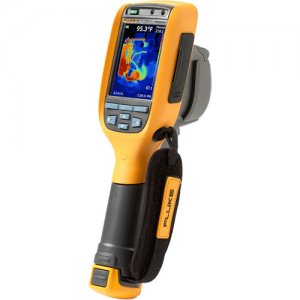

Detailed specifications of the Fluke Ti100 |
IR resolution (FPA size) |
160 x 120 FPA Uncooled Microbolometer |
Spectral band |
7.5 μm to 14 μm (long wave) |
Capture or refresh rate |
9Hz |
NETD (Thermal sensitivity) |
≤ 0.10°C at 30°C target temp (100 mK) |
FOV (Field of view) |
22.5 °H x 31 °V |
IFOV (Spatial resolution) |
3.39 mRad |
Temperature measurement range (not calibrated below -10°C) |
-20°C to +250°C (-4°F to +482°F) |
Temperature measurement accuracy |
± 2°C or 2% (at 25°C nominal, whichever is greater) |
IR-Fusion technology |
Focus-free 1.2m (4ft) and Beyond |
Focus mechanism |
FULL IR |
Standard palettes |
Blue-Red, Grayscale, Ironbow, Amber |
User definable spot markers |
SmartView Only |
Level and span control |
Manual and auto |
Minimum span in auto mode |
5°C |
Minimum span in manual mode |
2.5°C |
Minimum IR focus distance |
1.2m (4 ft) |
Weight |
0.726 kg (1.6 lb) |
Size |
11.2 x 3.4 x 5.3 in(28.4 x 8.6 x 13.5 cm) |
LCD display |
3.5 inch diagonal (portrait format) |
Laser pointer |
Yes |
Emissivity correction |
Yes |
Background (reflected) compensation |
Yes |
Memory review |
Thumbnail review |
Battery (field-replaceable, rechargeable) |
Two |
Battery life |
4+ hours |
Charging power supply |
2 meter (6.5 feet) |
Drop test |
2 meter (6.5 feet) |
Ingress protection (IP) rating (IEC 60529) |
IP 54 |
Recommended Calibration cycle |
Two-years |
Memory storage |
2 GB SD memory card |
Direct download capability |
mini USB download direct to PC |
Operating temperature range |
-10°C to +50°C (14°F to 122°F) |
Storage temperature range |
-20°C to +50°C (-4°F to 122°F) |
Operating humidity |
Operating and storage 10% to 95%, Non-condensing |
Vibration and shock |
2G, IEC 68-2-26 and 25G, IEC 68-2-29 |
Safety standards |
CSA (US and CAN): C22.2 No. 61010-1-04, UL: UL STD 61010-1 (2nd Edition), ISA: 82.02.01 |
C Tick |
IEC/EN 61326-1 |
EMI, RFI, EMC |
EN61326-1; FCC Part 5 |
