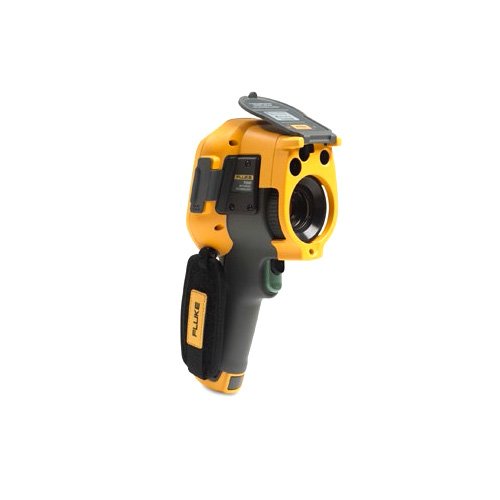

The Fluke Ti200 Advanced Performance Infrared Camera is able to take High-temperature measurements, up to 650°C. The user can detect and communicate issues faster with patented Fluke IR-Fusion technology with AutoBlend mode. Additionally, the Fluke Ti/200 is capable of capturing up to five additional measurements with CNXTM Wireless System for more complete analysis and reporting. With it's ease of use, even with one hand, and quick communication with media devices like your PC, Apple iPhone and iPad. The user can quickly navigate the menus of the Fluke Ti/200 thanks to the high resolution 640x480 capacitive touch screen..
The Fluke Ti200 Advanced Performance Infrared Camera is equipped with LaserSharp Auto Focus. Thanks to the LaserSharp Auo Focus, the Fluke TI200 ensures each shot is clear and the readings are easy to understand. The Fluke Ti 200 uses a laser to calculate the distance to your target before it focuses. Place the red laser dot on the object you are inspecting, then pull and release the trigger for a perfect in-focus image.
IR-PhotoNotes Annotation System
Get an exact reference to your problem area by capturing multiple photos per file. Add images of equipment, motor nameplates, workroom doors or any other useful or critical information.
Multi-mode video recording
Troubleshoot with the industry’s only infrared camera that offers the proprietary IR-Fusion Technology and records focus-free video in visible light and infrared. Monitor processes over time, easily create infrared video reports, and troubleshoot frame-by-frame. Easily download to PCs for video viewing and analysis.
IR-OptiFlex Focus System
Discover issues significantly faster with Fluke’s revolutionary, ultra-rugged focus system. The IR-OptiFlex Focus System gives you optimum focus by combining focus-free ease-of-use with the flexibility of manual focus on the same camera!
IR-Fusion Technology
Enjoy the industry’s only point-and-shoot IR-Fusion infrared cameras that provide five different user-selectable modes for greater clarity. Our patented technology blends digital and infrared images into a single image to precisely document problem areas. Fluke exclusive AutoBlend Mode generates a partially transparent image to make problem detection and communication fast and easy.
Superior image quality
There’s a reason Fluke is so passionate about image quality. Clearer, cleaner, crisper images result in better information and more informed solutions. The better the image, the better you look when you show the images to your managers and customers. Our newest models of infrared cameras are the only ones where you can find IR-Fusion Technology and LaserSharp Auto Focus. The Fluke Ti200 also come fully loaded with a 5 MP digital camera, a HDMI and a video output
Legendary ruggedness and reliability
Fluke has earned their reputation as a tool of choice for electrical, industrial and building professionals. Whatever the job and wherever you work, when there’s a Fluke infrared camera in your hand, you’re prepared for the worst and ready to do your best. Fluke infrared cameras are designed to withstand a 2 meter drop (6.5 ft) and engineered to resist water and dust (IP54 Rating) so that your camera works without compromise.
Specifications | |||
Temperature | Measurement Range (not calibrated below -10°C) |
-20°C to +650°C (-4°F to +1202°F) | |
Measurement Accuracy | ±2°C or 2% (at 25°C nominal, whichever is greater) | ||
On-screen emissivity correction | Yes (by number and table) | ||
On-screen reflected background temperature compensation |
Yes | ||
On-screen transmission correction | Yes | ||
Imaging performance | Image capture frequency | 60 Hz refresh rate depending upon model variation | |
Detector type | Focal Plane Array, uncooled microbolometer, 200 X 150 pixels | ||
Thermal sensitivity (NETD) | ≤ 0.075 °C at 30 °C target temp (75 mK) | ||
Total pixels | 30,000 | ||
Infrared spectral band | 7.5 μm to 14 μm (long wave) | ||
Visual (visible light) camera | Industrial performance 5.0 megapixel | ||
Standard infrared lens type | Field of view | 24° x 17° | |
Spatial resolution (IFOV) | 2.09 mRad | ||
Minimum focus distance | 15 cm (approx. 6 in) | ||
Optional telephoto infrared lens type | Field of view | 12° x 9° | |
Spatial resolution (IFOV) | 1.05 mRad | ||
Minimum focus distance | 45 cm (approx. 18 in) | ||
Optional wide-angle infrared lens type | Field of view | 46° x 34° | |
Spatial resolution (IFOV) | 4.19 mRad | ||
Minimum focus distance | 15 cm (approx. 6 in) | ||
Focus mechanism | LaserSharp Auto Focus System | Yes | |
Advanced Manual Focus | Yes | ||
Image presentation | Palettes | Standard | Ironbow, Blue-Red, High Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted |
Ultra Contrast | Ironbow Ultra, Blue-Red Ultra, High Contrast Ultra, Amber Ultra, Amber Inverted Ultra, Hot Metal Ultra, Grayscale Ultra, Grayscale Inverted Ultra | ||
Level and span | Smooth auto-scaling and manual scaling of level and span | ||
Fast auto toggle between manual and auto modes | Yes | ||
Fast auto-rescale in manual mode | Yes | ||
Minimum span | Manual mode | 2.0°C (3.6°F) | |
Auto mode | 3.0°C (5.4°F) | ||
IR-Fusion information | Features | Picture-In-Picture (PIP), Full screen infrared, AutoBlend mode | |
Color alarms (temperature alarms) | High-temperature , low-temperature, and isotherm (user-selectable) | ||
Image capture and data storage | Image capture, review, save mechanism | One-handed image capture, review, and save capability | |
Storage medium | Micro SD Memory Card, on-board ἀash memory, save-to-USB capability, direct download via USB-to-PC connection | ||
File formats | Non-radiometric (.bmp) or (.jpeg) or fully-radiometric (.is2) Video*: non-radiometric (MPEG - encoded .AVI) and fully-radiometric (.IS3) No analysis software required for non-radiometric (.bmp, .jpg and .avi*) ᰀles |
||
Export file formats w/SmartView software | BMP, DIB, GIF, JPE, JFIF, JPEG, JPG, PNG, TIF, and TIFF | ||
Memory review | Thumbnail view navigation and review selection | ||
Included Time-saving and productivity features | Voice annotation | 60 seconds maximum recording time per image; reviewable playback on imager | |
IR-PhotoNotes | Yes | ||
Wi-Fi connectivity | Yes, to PC, iPhone, iPad and WiFi to LAN | ||
Text annotation | Yes | ||
Video recording | Standard and Radiometric | ||
Streaming Video | Via USB to PC and HDMI to HDMI compatible screen | ||
CNX Wireless System | Yes | ||
Cardinal Compass | Yes | ||
GPS coordinates and recording | Yes | ||
Auto capture (temperature and interval) | Yes | ||
Remote control and operation (for special and advanced applications) | no, TI400 Only (click for more info) | ||
GeneralSpecifications | |||
Operating Temperature | -10°C to +50°C (14°F to 122°F) | ||
Storage temperature | -20°C to +50°C (-4°F to 122°F) without batteries | ||
Relative humidity | 10% to 95% non-condensing | ||
Ruggedized Touchscreen Display (Capacitive) | 8.9 cm (3.5 in) diagonal landscape color VGA (640 x 480) LCD with backlight | ||
Controls and adjustments | User selectable temperature scale (°C/°F) Language selection Time/Date set Emissivity selection Reflected background temperature compensation Transmission correction User selectable hot spot and cold spot, and center point on the image Expandable-contractable Measurement Box with MIN-AVG-MAX temp Color alarms User selectable backlight setting Graphical information display preference |
||
Software | SmartView and SmartView Mobile App - full analysis and reporting software included | ||
Batteries | Two lithium ion rechargeable smart battery packs with five-segment LED display to show charge level, all models | ||
Battery life | Four+ hours continuous use per battery pack (assumes 50 % brightness of LCD and average usage) | ||
Battery charge time | 2.5 hours to full charge | ||
AC battery charging | Two-bay ac battery charger (110 V ac to 220 V ac, 50/60 Hz) (included), or in-imager charging AC mains adapters included Optional 12 V automotive charging adapter |
||
AC operation | AC operation with included power supply (110 V ac to 220 V ac, 50/60 Hz). AC mains adapters included. | ||
Power saving | User selectable sleep and power off modes | ||
Safety standards | UL 61010-1:2012 CAN/CSA-C22.2 No.61010-1-12 IEC 61010-1 3rd Edition (2010) | ||
Electromagnetic compatibility | EN 61326-1:2006 IEC 61326-1:2005 | ||
Drop | Engineered to withstand 2 meter (6.5 feet) with standard lens | ||
Size (H x W x L) | 10.9 in x 4.8 in x 6.5 in (27.7 cm x 12.2 cm x 16.7 cm) | ||
Weight (battery included) | 1.04 Kg (2.3 lb) | ||
Enclosure rating | IP54 (protected against dust, limited ingress; protection against water spray from all directions) | ||
Warranty | Two-years (standard), extended warranties are available |
