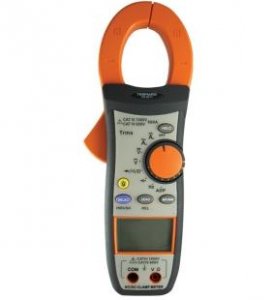

TEN007-TM-2013V3 TRMS AC/DC CLAMP METER ACA DCA 660A

Category: Clamp meters

CAT IV 600V, CAT III 1000V
LCD backlit display, with maximum reading of 6600.
AC voltage range: 0 to 750V.
AC current range: 0 to 660A.
DC voltage range: 0 to 1000V.
DC Current: 0 to 660A.
Resistance measurement to 66 megohms.
Data Hold, Min/Max, Autoranging, DCA Zero.
Test Ranges: ACV, ACA, Resistance, Frequency, Diode, Continuity.
Work light.
Auto Power Off.
Double Injection outer case.

Maximum Current

660 Amps

Display

6600 counts

Max. Conductor Size

40mm

AC Current

0.1A to 660A

DC Current

0.01A to 660A

DCA

Zero Adjustment

AC Voltage

0.1mV to 750V

DC Voltage

0.1mV to 1000V

Resistance

0.1Ω to 4000Ω,

Continuity Buzzer

Yes

Diode

Test voltage

Frequency

1Hz to 660KHz

True Rms

Yes

Backlit Display

Yes

Work Light

Yes

Autoranging

Yes

Auto Power Off

Yes

Inrush

Yes

Data Hold

Yes

Min/Max

Yes

Dimensions

252mm (L) x 91mm (W) x 22mm (D)
