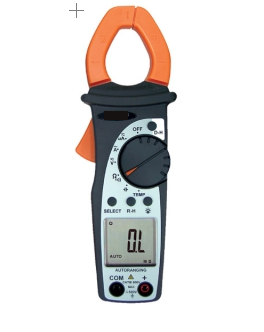

TEN008-TM-1016V3 AC-HVAC VOLT/AMP/TEMP CLAMP METER WITH TEMPERATURE

Category: Clamp meters

CAT III 600V
3-3/4 digit LCD Backlit Display, with Analog Bargraph.
Display Counts: 4000.
Auto Ranging.
AC/DC current: 0.1µA to 4000µA. (using test leads).
AC current: 0.01A to 400A (using jaw measurement).
Ranges: ACV, ACA, DCV, DCA, Resistance, Continuity, Capacitance, and Temperature.
Maximum conductor size 30mm.
Continuity test below 40 ohms, buzzer will sound.
Auto Power off.
Double injection outer case.



Maximum Current

400 Amps

Display Counts

4000 (Backlit display)

Maximum Conductor Size

30mm

AC Current Range

0.1µA to 4000µA/0.1A to 400A, ±(2.0% of rdg + 10 dgts)

AC Voltage Range

0.1mV to 600V, ±(1.0% of rdg + 3 dgts)

DC Voltage Range

0.1mV to 600V, ±(0.8% of rdg + 2 dgts)

DC Current

0.1µA to 4000µA, ±(2.0% of rdg + 10 dgts)

Continuity Buzzer

Yes

Data Hold

Yes

Capacitance

10pF to 4mF

Temperature (Type 'K')

-50°C to 1200°C

Power Supply

2 1.5V type 'AAA' batteries

Resistance

0.1 ohm to 40 megohms ±(0.8% + 2 dgts)

Dimensions

205mm (L) x 64mm (W) x 39MM (D)

Weight

280g approx. including batteries
